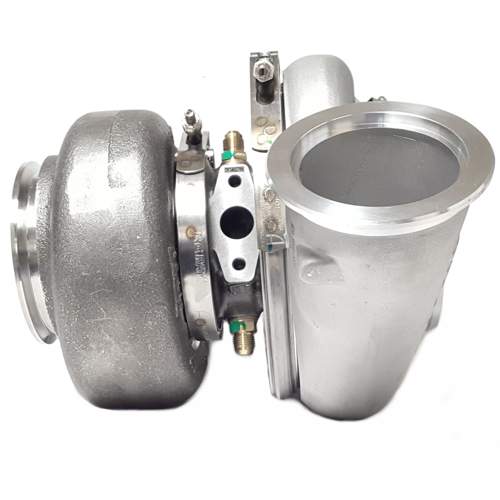

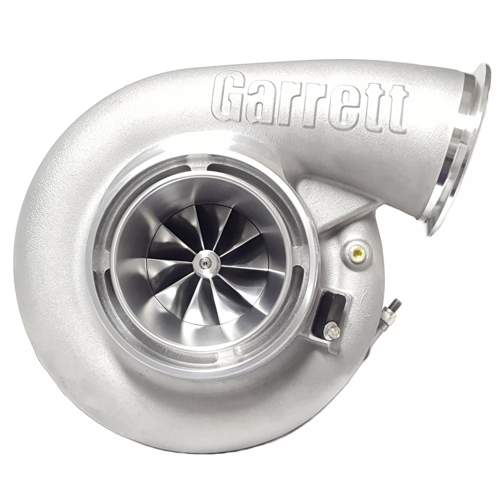

Garrett G-Series G45-1125 (67MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.44 A/R Turbine Housing GRT-TBO-P43

Product Description:

Garrett G-Series G45-1125 (67MM compressor inducer diameter) Turbocharger Unit w/ T4 Divided 1.44 A/R Turbine Housing capable of 1125HP!

Product Features:

• Quick spooling, high horsepower solution for 2.0 liter up to 8.0 liter engine platforms
• G Series compressor aero increases flow up to 24% (compared to GTX4508R)
• 67mm compressor inducer sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter (please check relevant rulebook)
• Dual ceramic ball bearing with steel cages
• G Series turbine aero increases flow 14% (compared to GTX4508R)
• Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
• Lightweight aluminum backplate
• Fully machined speed sensor and pressure ports
• Water fittings included with super core
• Fully machined speed sensor and pressure ports
• Water fittings included with super core
• Stainless steel turbine housings available in T4 divided inlet

Product Specifications:

• Compressor Wheel Inducer: 67mm
• Compressor Wheel Exducer: 102mm
• Compressor Wheel Trim: 44
• Compressor Housing A/R: 0.85
• Turbine Wheel Inducer: 89mm
• Turbine Wheel Exducer: 82mm
• Turbine Wheel Trim: 84

INSTALLATION HARDWARE:



Coolant - Water Options (Requires 2 units): *Please call for assistance*

Oil feed flange (-4 AN with built-in Restrictor): FLA-040

Oil feed gasket: GSK-011

Oil drain flange: FLA-009

Oil drain gasket: GSK-007

V-Band Compressor Outlet Flange/Clamp Set: FLS-055

T4 Turbine Inlet Flange, Divided, Stainless: FLS-057 (Mild steel option)

Gasket, T4 (T04) Turbine Inlet - DIVIDED: GSK-014

V-Band Outlet Flange (for Downpipe): FLS-378

V-Band Outlet Clamp: CLA-294

NOTE: Alternate coolant and oil fittings and flanges are available.

Compressor & Turbine Maps:
