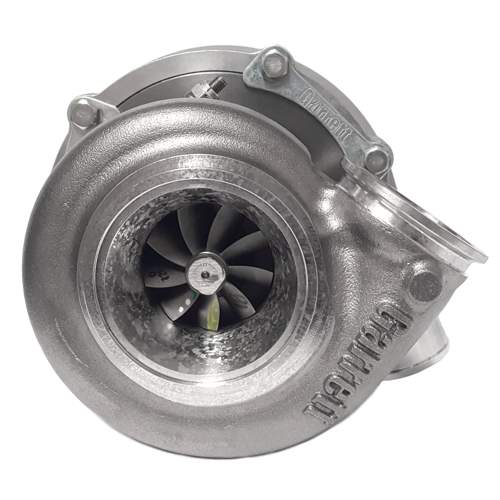

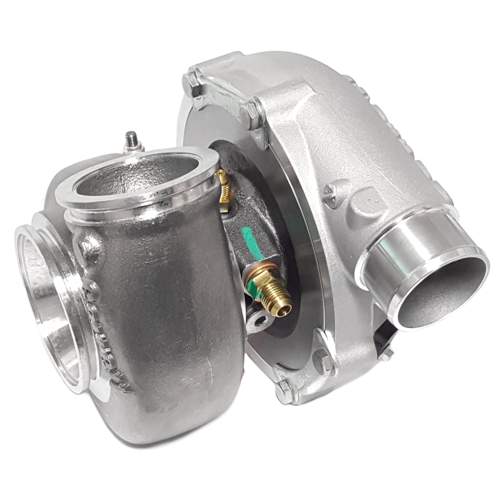

Garrett G30-660, REVERSE ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880698-5003S GRT-TBO-M49

Product Description:

Garrett® G30-660 reverse turbo assembly kit with 3" inlet and 2" outlet compressor housing and 1.01 A/R O/V, v-band in/out turbine housing.

Product Features:

• New G Series compressor wheel aerodynamics
• Fully machined speed sensor and pressure ports
• Standard and reverse rotation configurations available
• Oil restrictor and water fittings included with purchase
• One piece center housing and backplate for increased durability
• 4 water jacket ports for customizable installation
• Mar-M turbine wheel material rated up to 1050° C | 1922° F
• Stainless steel turbine housings for temperatures up to 1050° C | 1922° F

Product Specifications:

• Compressor Wheel Inducer: 54mm
• Compressor Wheel Exducer: 67mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.70
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84
• Turbine Housing Inlet: 3 Inch O.D. V-Band
• Turbine Housing Outlet: 3.55 inch (90mm)O.D. w/81mm centering ring V-Band
• Includes Oil Feed (1mm) Restrictor Fitting to -4AN
• Includes two Coolant Fittings to -6AN
• Includes Turbine Housing Inlet & Outlet V-Band Clamps



INSTALLATION HARDWARE:

Inlet V-Band Flange (For Turbo Manifold): FLS-350

Inlet V-Band Clamp (For Turbo Manifold): CLA-265

Out V-Band Flange (For Down-pipe): FLS-351

Out V-Band Clamp (For Down-pipe): CLA-048

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

Oil drain fasteners: FST-034

Boost Pressure Port Fitting: FTG-198



 Speed Sensor Kit: ACS-032



Compressor & Turbine Maps:
