Garrett GTX3584RS Turbo w/ other Turbine Options - Slip Hose Compressor Outlet GRT-TBO-566

PRODUCT DESCRIPTION:

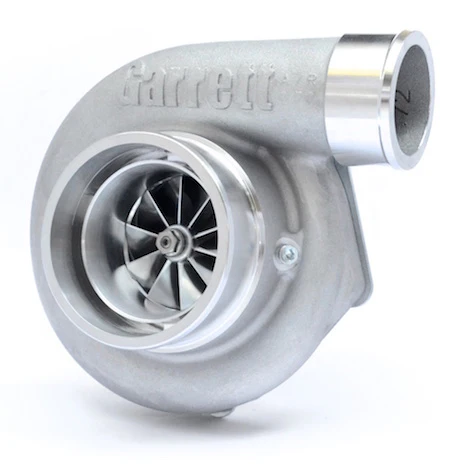

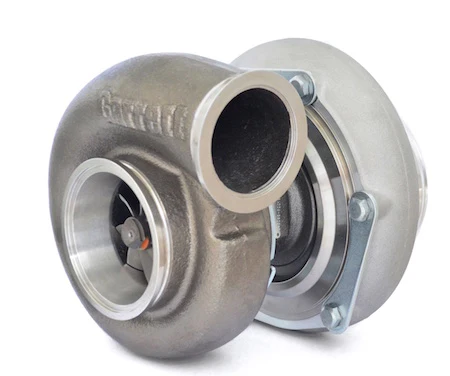

Garrett GTX3584RS dual ball bearing turbocharger with hose bead compressor outlet housing.

The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!

** Hose bead compressor housing outlet version **

PRODUCT FEATURES:

Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel

Ultra high flow "RS" blade profile turbine wheel

Dual ball bearing CHRA rotating assembly

Compact package capable of 1,000HP

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 67mm

Compressor Wheel Exducer: 84mm

Compressor Wheel Trim: 64

Compressor Housing A/R: 0.72

Compressor Housing Inlet: 4 inch diameter

Compressor Housing Outlet: 2.5 inch diameter

Turbine Wheel Inducer: 68mm

Turbine Wheel Exducer: 62mm

Turbine Wheel Trim: 84



INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031



 NOTE: Alternate coolant and oil fittings and flanges are available.

TURBINE HOUSING OPTIONS:



Garrett Stainless Steel V-Band Inlet/Outlet .83 A/R: HSG-340

Garrett Stainless Steel V-Band Inlet/Outlet 1.01 A/R: HSG-341

Garrett Stainless Steel V-Band Inlet/Outlet 1.21 A/R: HSG-342





APPLICATION NOTES:

The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.
