Garrett GTX3584RS (with T3 Inlet & 4 Bolt Outlet Turbine Housing) GRT-TBO-596
HomeStore

Garrett GTX3584RS (with T3 Inlet & 4 Bolt Outlet Turbine Housing) GRT-TBO-596

Garrett GTX3584RS (with T3 Inlet & 4 Bolt Outlet Turbine Housing) GRT-TBO-596

PRODUCT DESCRIPTION:

Garrett GTX3584RS dual ball bearing turbocharger, including hose bead compressor outlet housing; and a Garrett T3 Inlet, and 3" GT 4 Bolt outlet turbine housing.

The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!

** Hose Bead Outlet Compressor Housing.

PRODUCT FEATURES:

  • Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
  • Ultra high flow "RS" blade profile turbine wheel
  • Dual ball bearing CHRA rotating assembly
  • Compact package capable of 1,000HP

    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 67mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 64
  • Compressor Housing A/R: 0.72
  • Compressor Housing Inlet: 4 inch diameter
  • Compressor Housing Outlet: 2.5 inch diameter
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84

    • TURBINE HOUSING SPECIFICATIONS:
  • T3 Inlet
  • 3 Inch GT 4 Bolt Outlet
  • .82 or 1.06 A/R

    •

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031


    • NOTE: Alternate coolant and oil fittings and flanges are available.


    TURBINE HOUSING INSTALLATION COMPONENTS:

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • Discharge Flange GT 4 Bolt 3" (Stainless Steel): FLS-085
  • Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: GSK-018
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031


    • APPLICATION NOTES:

  • The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.

    • COMPRESSOR & TURBINE MAPS:











    Select Select Turbine Housing:
    Select Select Compressor Housing:
    From $901.73

    Original: $3,005.78

    -70%
    Garrett GTX3584RS (with T3 Inlet & 4 Bolt Outlet Turbine Housing) GRT-TBO-596—

    $3,005.78

    $901.73

    More Images

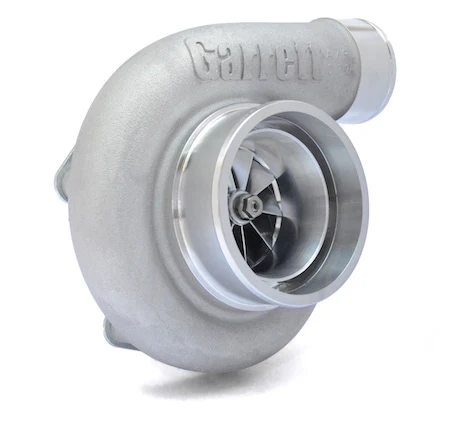

    Garrett GTX3584RS (with T3 Inlet & 4 Bolt Outlet Turbine Housing) GRT-TBO-596 - Image 2

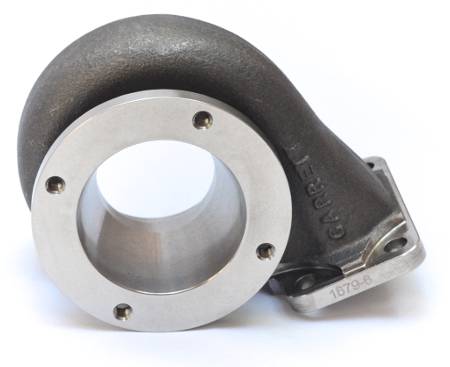

    Garrett GTX3584RS (with T3 Inlet & 4 Bolt Outlet Turbine Housing) GRT-TBO-596 - Image 3

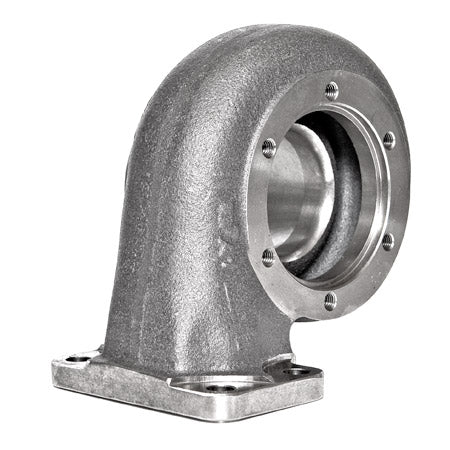

    Garrett GTX3584RS (with T3 Inlet & 4 Bolt Outlet Turbine Housing) GRT-TBO-596 - Image 4

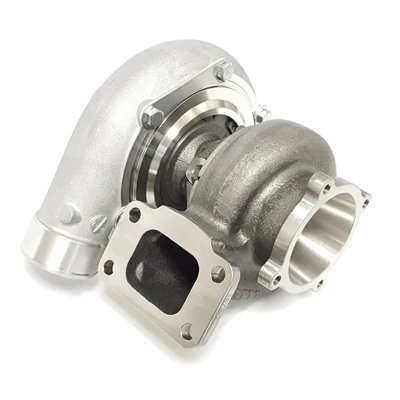

    Garrett GTX3584RS (with T3 Inlet & 4 Bolt Outlet Turbine Housing) GRT-TBO-596

    PRODUCT DESCRIPTION:

    Garrett GTX3584RS dual ball bearing turbocharger, including hose bead compressor outlet housing; and a Garrett T3 Inlet, and 3" GT 4 Bolt outlet turbine housing.

    The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!

    ** Hose Bead Outlet Compressor Housing.

    PRODUCT FEATURES:

  • Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
  • Ultra high flow "RS" blade profile turbine wheel
  • Dual ball bearing CHRA rotating assembly
  • Compact package capable of 1,000HP

    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 67mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 64
  • Compressor Housing A/R: 0.72
  • Compressor Housing Inlet: 4 inch diameter
  • Compressor Housing Outlet: 2.5 inch diameter
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84

    • TURBINE HOUSING SPECIFICATIONS:
  • T3 Inlet
  • 3 Inch GT 4 Bolt Outlet
  • .82 or 1.06 A/R

    •

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031


    • NOTE: Alternate coolant and oil fittings and flanges are available.


    TURBINE HOUSING INSTALLATION COMPONENTS:

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • Discharge Flange GT 4 Bolt 3" (Stainless Steel): FLS-085
  • Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: GSK-018
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031


    • APPLICATION NOTES:

  • The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.

    • COMPRESSOR & TURBINE MAPS:
