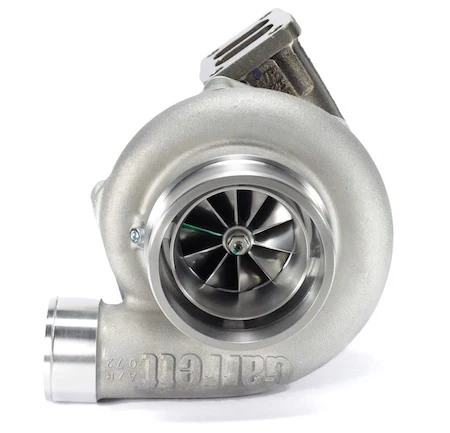

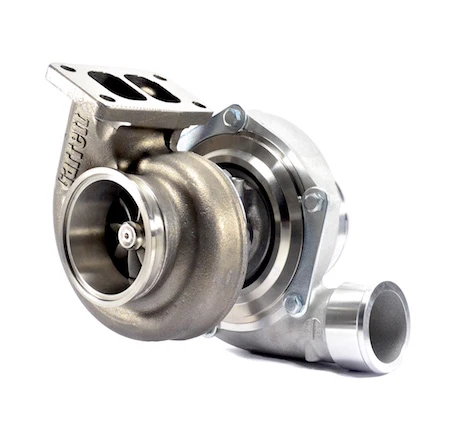

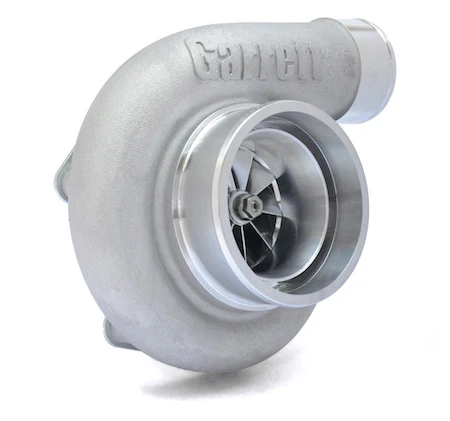

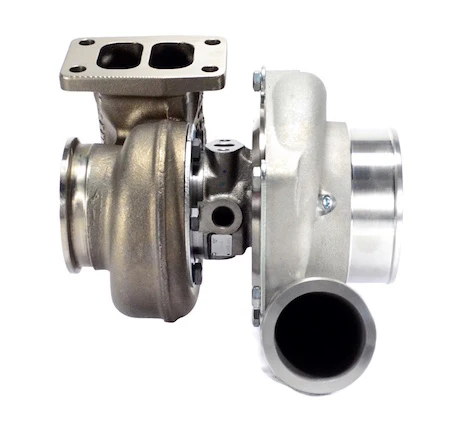

Garrett GTX3584RS with T3 Twinscroll & Ni-Resist Turbine Housing) 1.01 A/R GRT-TBO-597

PRODUCT DESCRIPTION:

Garrett GTX3584RS dual ball bearing turbocharger, including hose bead compressor outlet housing; and a Garrett T3 Twinscroll 1.01 A/R, and 3" GT V-Band outlet turbine housing.

The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!

** Hose Bead Outlet Compressor Housing.

PRODUCT FEATURES:

Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel

Ultra high flow "RS" blade profile turbine wheel

Dual ball bearing CHRA rotating assembly

Compact package capable of 1,000HP

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 67mm

Compressor Wheel Exducer: 84mm

Compressor Wheel Trim: 64

Compressor Housing A/R: 0.72

Compressor Housing Inlet: 4 inch diameter

Compressor Housing Outlet: 2.5 inch diameter

Turbine Wheel Inducer: 68mm

Turbine Wheel Exducer: 62mm

Turbine Wheel Trim: 84

Turbine A/R : 1.01

TURBINE HOUSING SPECIFICATIONS:

T3 Twinscroll (T3 divided inlet)

3 Inch GT V-Band Outlet (81mm centering ring)

1.01 A/R

Ni-Resist material



INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

NOTE: Alternate coolant and oil fittings and flanges are available.

TURBINE HOUSING INSTALLATION COMPONENTS:

T3 Divided Inlet Flange (for Turbo Manifold): FLS-068

T3 Divided Inlet Gasket: GSK-015

3 Inch GT V-Band Flange: FLS-105

APPLICATION NOTES:

The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.

COMPRESSOR & TURBINE MAPS:
