Garrett GTX3584RS (with T4 Divided 1.06 A/R Turbine Housing) GRT-TBO-591

PRODUCT DESCRIPTION:

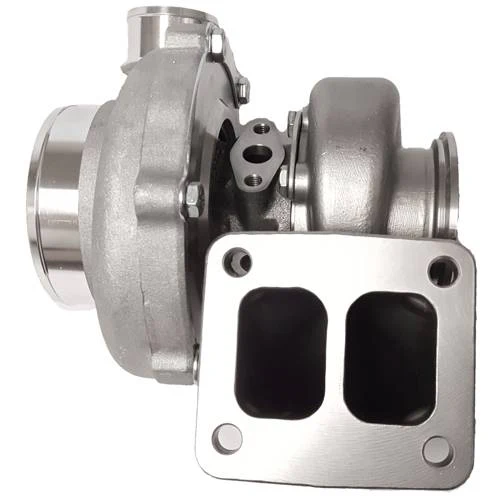

Garrett GTX3584RS dual ball bearing turbocharger, including hose bead compressor outlet housing; and a T4 Divided Inlet, 3" V-band outlet, and 1.06 A/R turbine housing.

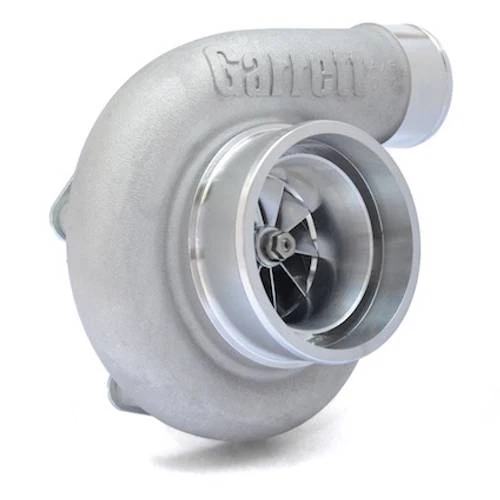

The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!

** Hose Bead Outlet Compressor Housing. V-Band Outlet Compressor Housing available as part number (TBO-592)

PRODUCT FEATURES:

• Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
• Ultra high flow "RS" blade profile turbine wheel
• Dual ball bearing CHRA rotating assembly
• Compact package capable of 1,000HP

PRODUCT SPECIFICATIONS:

• Compressor Wheel Inducer: 67mm
• Compressor Wheel Exducer: 84mm
• Compressor Wheel Trim: 64
• Compressor Housing A/R: 0.72
• Compressor Housing Inlet: 4 inch diameter
• Compressor Housing Outlet: 2.5 inch diameter
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84

TURBINE HOUSING SPECIFICATIONS:

• T4 Divided Inlet
• 3 Inch V-Band Outlet
• 1.06 A/R

INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

NOTE: Alternate coolant and oil fittings and flanges are available.

 TURBINE HOUSING INSTALLATION COMPONENTS:

T4 Divided Inlet Gasket: GSK-014

T4 Divided Inlet Flange (for Turbo Manifold): FLS-057

Outlet flange and clamp set: CLA-052



APPLICATION NOTES:

• The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.

COMPRESSOR & TURBINE MAPS:
