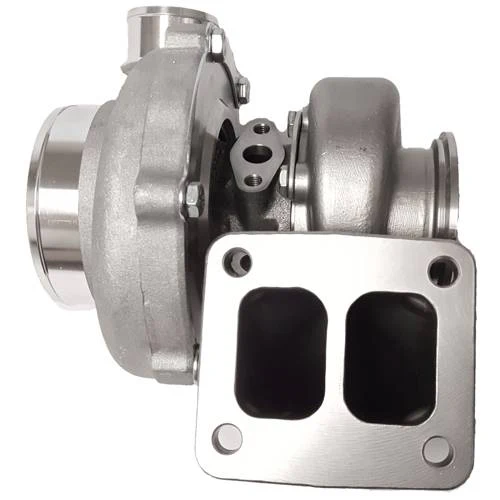

Garrett GTX3584RS (with T4 Divided 1.06 A/R Turbine Housing & V-Band Outlet Comp. Hsg) GRT-TBO-592
HomeStore

Garrett GTX3584RS (with T4 Divided 1.06 A/R Turbine Housing & V-Band Outlet Comp. Hsg) GRT-TBO-592

Garrett GTX3584RS (with T4 Divided 1.06 A/R Turbine Housing & V-Band Outlet Comp. Hsg) GRT-TBO-592

PRODUCT DESCRIPTION:

Garrett GTX3584RS dual ball bearing turbocharger, including V-Band compressor outlet housing; and a T4 Divided Inlet, 3" V-band outlet, and 1.06 A/R turbine housing.

The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!

** V-Band Outlet Compressor Housing. Hose Bead Outlet Compressor Housing available as part number (GRT-TBO-591)

PRODUCT FEATURES:

  • Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
  • Ultra high flow "RS" blade profile turbine wheel
  • Dual ball bearing CHRA rotating assembly
  • Compact package capable of 1,000HP
PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 67mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 64
  • Compressor Housing A/R: 0.72
  • Compressor Housing Inlet: 4 inch diameter
  • Compressor Housing Outlet: V-Band Flange
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
TURBINE HOUSING SPECIFICATIONS:
  • T4 Divided Inlet
  • 3 Inch V-Band Outlet
  • 1.06 A/R

INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031
  • Compressor Housing Outlet V-Band Flange (Charge Pipe Side): FLS-240
  • Compressor Housing Outlet V-Band Clamp: CLA-053

    •

    NOTE: Alternate coolant and oil fittings and flanges are available.

     TURBINE HOUSING INSTALLATION COMPONENTS:

  • T4 Divided Inlet Gasket: GSK-014
  • T4 Divided Inlet Flange (for Turbo Manifold): FLS-057
  • Outlet flange and clamp set: CLA-052


    • APPLICATION NOTES:

    • The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.

    COMPRESSOR & TURBINE MAPS:



    Select Select Compressor Housing:
    From $901.73

    Original: $3,005.78

    -70%
    Garrett GTX3584RS (with T4 Divided 1.06 A/R Turbine Housing & V-Band Outlet Comp. Hsg) GRT-TBO-592—

    $3,005.78

    $901.73
