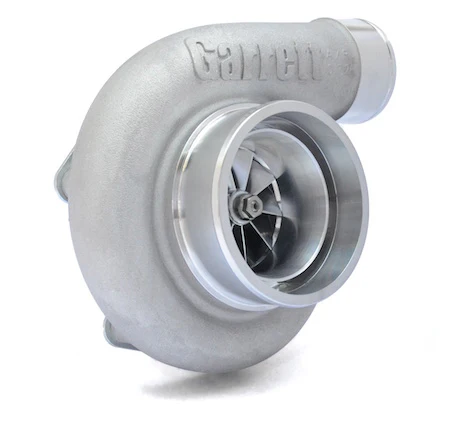

Garrett GTX3584RS (with T4 Turbine Housing) GRT-TBO-595

Product Description:

Garrett GTX3584RS dual ball bearing turbocharger, including hose bead compressor outlet housing; and a Garrett T4 Inlet, and 3" GT V-band outlet turbine housing (.63, .82 or 1.06) A/R.

• Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
• Ultra high flow "RS" blade profile turbine wheel
• Dual ball bearing CHRA rotating assembly
• Compact package capable of 1,000HP

** Hose Bead Outlet Compressor Housing.

Product Specifications:

• Compressor Wheel Inducer: 67mm
• Compressor Wheel Exducer: 84mm
• Compressor Wheel Trim: 64
• Compressor Housing A/R: 0.72
• Compressor Housing Inlet: 4 inch diameter
• Compressor Housing Outlet: 2.5 inch diameter
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84

Turbine Housing Specifications:

• T4 Inlet
• 3 Inch GT V-Band Outlet (81mm centering ring)
• .63, .82 or 1.06 A/R

INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

T4 Inlet Gasket: GSK-006

T4 Inlet Flange (for Turbo Manifold): FLS-200

3 Inch V-Band Clamp and 3 inch GT V-Band Flange (81mm centering ring): CLA-024

NOTE: Alternate coolant and oil fittings and flanges are available.

Appliction Notes:

• The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.

Compressor & Turbine Maps:
