Garrett GTX3584RS (with TiAL Compatible Turbine Housing) GRT-TBO-587

PRODUCT DESCRIPTION:

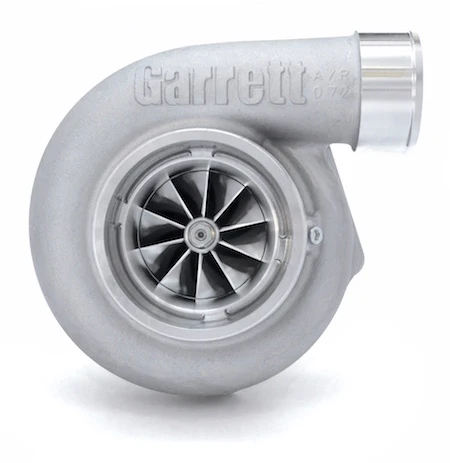

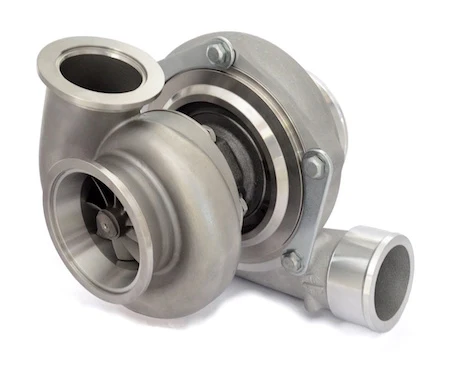

Garrett GTX3584RS dual ball bearing turbocharger, including hose bead compressor outlet housing; and TiAL compatible flanged V-Band inlet & outlet turbine housing.

The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!


PRODUCT FEATURES:

Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel

Ultra high flow "RS" blade profile turbine wheel

Dual ball bearing CHRA rotating assembly

Compact package capable of 1,000HP

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 67mm

Compressor Wheel Exducer: 84mm

Compressor Wheel Trim: 64

Compressor Housing A/R: 0.72

Compressor Housing Inlet: 4 inch diameter

Compressor Housing Outlet: 2.5 inch diameter

Turbine Wheel Inducer: 68mm

Turbine Wheel Exducer: 62mm

Turbine Wheel Trim: 84

TURBINE HOUSING OPTIONS:

TiAL compatible V-Band inlet and V-Band outlet, 0.82 A/R

TiAL compatible V-Band inlet and V-Band outlet, 1.03 A/R



INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031



NOTE: Alternate coolant and oil fittings and flanges are available.

APPLICATION NOTES:

The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.

Please also note that TiAl does not currently produce a turbine housing for the GTX84RS - Therefore ATP is offering this "TiAl compatible" turbine housing option in order to make this turbo "Kit Compatible" into existing Turbo kits that utilize the same style turbine housing.
