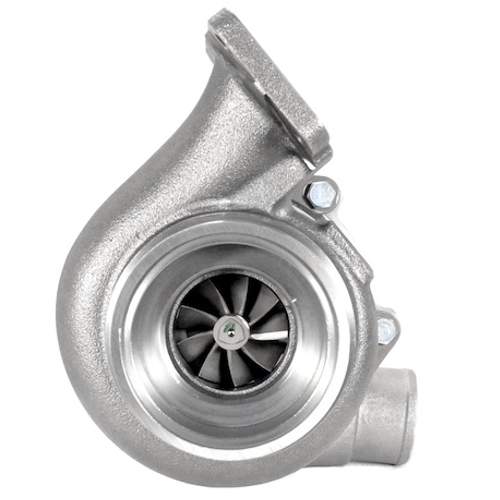

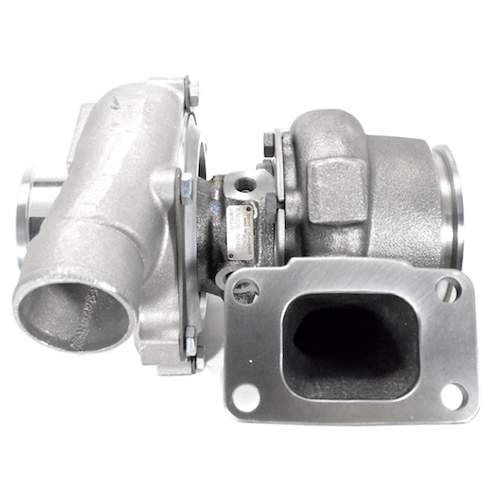

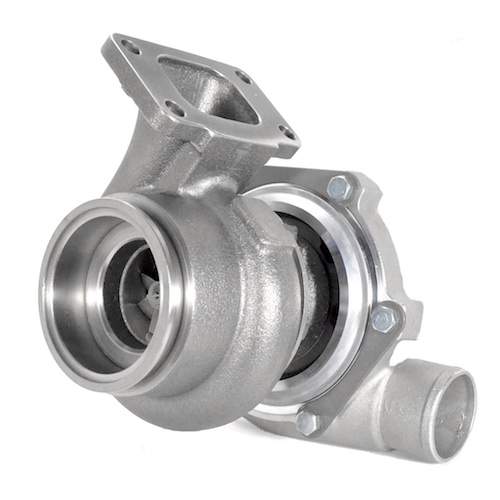

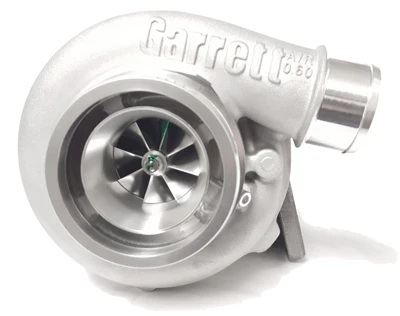

GEN2 Garrett GTX3071R Turbo w/ .48 A/R T3 Turbine Housing w/3" GT VBAND Exit GRT-TBO-B33

Product Description:

Garrett GEN2 GTX3071R dual ball bearing turbocharger with T31 inlet and 3" GT V-band outlet (w/81mm centering groove) in the .48 A/R Turbine Housing. Advanced GEN2 billet compressor wheel capable of 650HP!

Product Features:

• Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
• Forged billet aluminum compressor wheel
• Dual ball bearing CHRA rotating assembly

Product Specifications:

• Compressor Wheel Inducer: 54mm
• Compressor Wheel Exducer: 71mm
• Compressor Wheel Trim: 58
• Compressor Housing A/R: 0.60
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

T3 Inlet Flange (for Turbo Manifold): FLS-038

T3 Inlet Gasket: GSK-005

V-Band "GT" 3 Inch Outlet Flange (for Downpipe): FLS-246

V-Band Outlet Clamp: CLA-048



NOTE: Alternate coolant and oil fittings and flanges are available.

Compressor & Turbine Maps:
