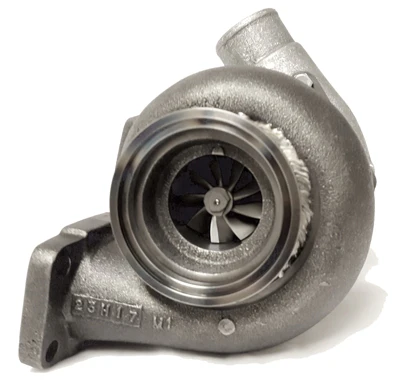

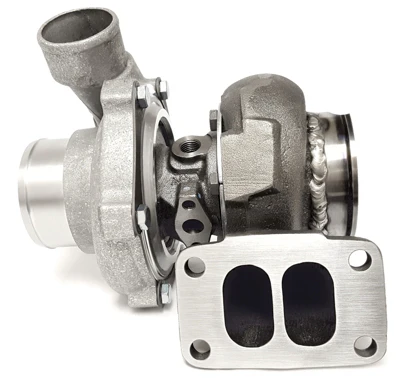

GEN2 Garrett GTX3071R Turbo w/ Divided 1.06 A/R T3 Turbine Housing w/3" VBAND Exit GRT-TBO-784
GEN2 Garrett GTX3071R Turbo w/ Divided 1.06 A/R T3 Turbine Housing w/3" VBAND Exit GRT-TBO-784
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 54mm
Compressor Wheel Exducer: 71mm
Compressor Wheel Trim: 58
Compressor Housing A/R: 0.60
Turbine Wheel Inducer: 60mm
Turbine Wheel Exducer: 55mm
Turbine Wheel Trim: 84
Coolant - Water Options (*Please call for assistance*)
Oil feed fitting with .035" restrictor: OIL-021
Oil drain flange: FLA-010
Oil drain gasket: GSK-008
8mm x 1.25 (thread pitch) Stud: FST-030
8mm x 1.25 (thread pitch) Locking Head Nut: FST-031
T3 Divided Inlet Flange (for Turbo Manifold): FLS-068
T3 Divided Inlet Gasket: GSK-015
3" GT V-band Outlet Flange w/81mm protruded lip (for Downpipe): FLS-246
Matching V-Band Outlet Clamp: CLA-048
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
INSTALLATION HARDWARE:
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
$709.12
Original: $2,363.73
-70%GEN2 Garrett GTX3071R Turbo w/ Divided 1.06 A/R T3 Turbine Housing w/3" VBAND Exit GRT-TBO-784—
$2,363.73
$709.12More Images
GEN2 Garrett GTX3071R Turbo w/ Divided 1.06 A/R T3 Turbine Housing w/3" VBAND Exit GRT-TBO-784
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 54mm
Compressor Wheel Exducer: 71mm
Compressor Wheel Trim: 58
Compressor Housing A/R: 0.60
Turbine Wheel Inducer: 60mm
Turbine Wheel Exducer: 55mm
Turbine Wheel Trim: 84
Coolant - Water Options (*Please call for assistance*)
Oil feed fitting with .035" restrictor: OIL-021
Oil drain flange: FLA-010
Oil drain gasket: GSK-008
8mm x 1.25 (thread pitch) Stud: FST-030
8mm x 1.25 (thread pitch) Locking Head Nut: FST-031
T3 Divided Inlet Flange (for Turbo Manifold): FLS-068
T3 Divided Inlet Gasket: GSK-015
3" GT V-band Outlet Flange w/81mm protruded lip (for Downpipe): FLS-246
Matching V-Band Outlet Clamp: CLA-048
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
INSTALLATION HARDWARE:
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
