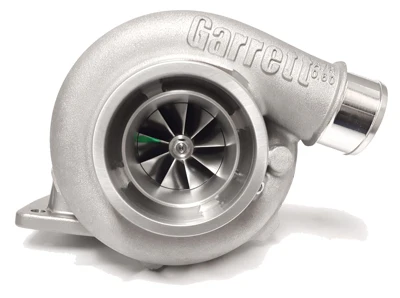

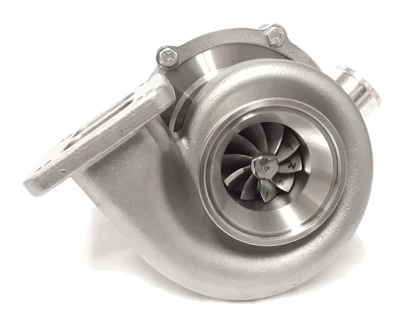

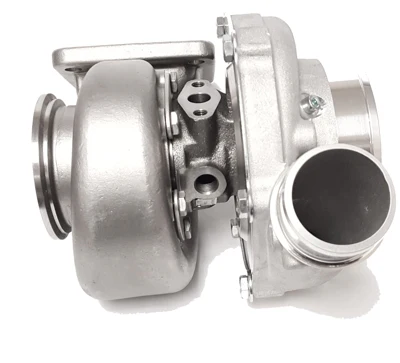

GEN2 Garrett GTX3071R Turbo w/ Divided 1.06 A/R T4 Turbine Housing w/3" VBAND Exit GRT-TBO-781

PRODUCT DESCRIPTION:

Garrett GEN2 GTX3071R dual ball bearing turbocharger, including T4 Divided Inlet and 3 Inch V-Band Outlet, 1.06 A/R Turbine Housing (ATP-HSG-063). Advanced GEN2 billet compressor wheel capable of 650HP!


PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel

Forged billet aluminum compressor wheel

Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 54mm

Compressor Wheel Exducer: 71mm

Compressor Wheel Trim: 58

Compressor Housing A/R: 0.60

Turbine Wheel Inducer: 60mm

Turbine Wheel Exducer: 55mm

Turbine Wheel Trim: 84



INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

T4 Divided Inlet Flange (for Turbo Manifold): FLS-057

T4 Divided Inlet Gasket: GSK-014

3" GT V-Band Outlet Flange with 81mm centering groove (for Downpipe): FLS-246

Matching Downpipe V-Band Outlet Clamp: Product Code:CLC-CLA-048

NOTE: Alternate coolant and oil fittings and flanges are available.


COMPRESSOR & TURBINE MAPS:
