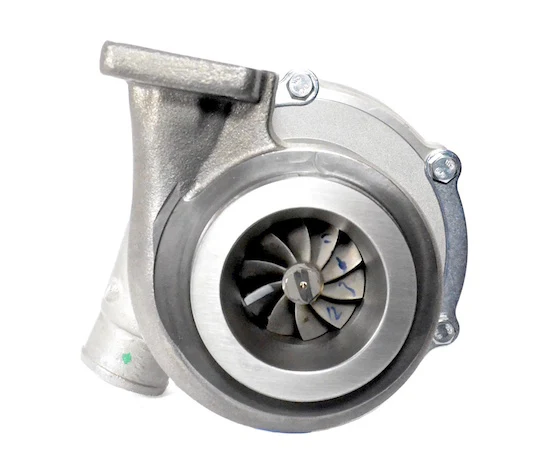

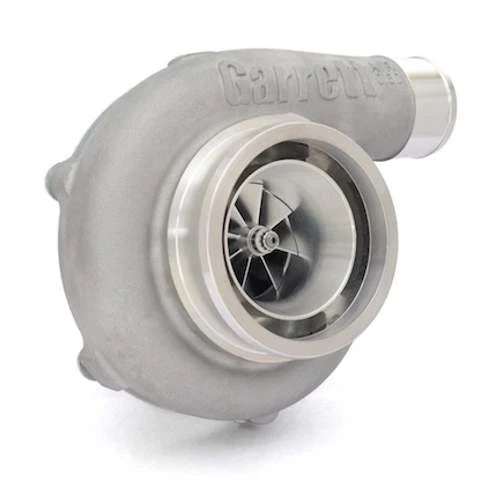

GEN2 Garrett GTX3071R Turbo w/ Divided .78 A/R T3 Turbine Housing w/3" VBAND Exit GRT-TBO-782

PRODUCT DESCRIPTION:

Garrett GEN2 GTX3071R dual ball bearing turbocharger, including T3 Divided Inlet and 3 Inch V-Band Outlet .78 A/R Turbine Housing (ATP-HSG-009). Advanced GEN2 billet compressor wheel capable of 650HP!


PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel

Forged billet aluminum compressor wheel

Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 54mm

Compressor Wheel Exducer: 71mm

Compressor Wheel Trim: 58

Compressor Housing A/R: 0.60

Turbine Wheel Inducer: 60mm

Turbine Wheel Exducer: 55mm

Turbine Wheel Trim: 84



INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

T3 Divided Inlet Flange (for Turbo Manifold): FLS-068

T3 Divided Inlet Gasket: GSK-015

V-Band 3 Inch Outlet Flange (for Downpipe): FLS-063

V-Band Outlet Clamp: CLA-013

 NOTE: Alternate coolant and oil fittings and flanges are available.


COMPRESSOR & TURBINE MAPS:
