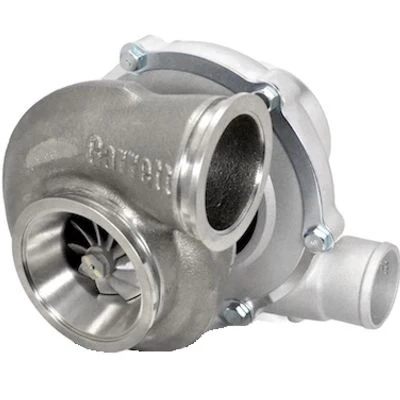

GEN2 Garrett GTX3071R Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-870

GEN2 Garrett GTX3071R Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-870

PRODUCT DESCRIPTION:
Garrett GEN2 GTX3071R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 650HP!

The Garrett GEN2 GTX3071R fits turbine housings for Garrett GT30 (standard size) and GTX30 series turbochargers with a 60mm inducer and 84 trim turbine wheel.


PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly

    •

    PRODUCT SPECIFICATIONS:

  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84


    • COMPRESSOR HOUSING OPTIONS:
  • T04E Frame, 4 inch inlet, 2 inch outlet, and machined ported shroud (standard/default option)
  • T04B Frame, 3 inch inlet and 2 inch outlet (Alternate compact option, same layout as GT2860RS/GT2871R)


    TURBINE HOUSING:
  • Ni-Resist V-Band Inlet & Outlet .61 A/R (V-Band Clamps shown are included!)

    •

    *PLEASE EMAIL FOR ASSISTANCE IN ALTERNATIVE TURBINE HOUSING OPTIONS*



    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • V-Band Inlet Flange (for Turbo Manifold): FLS-093
  • V-Band Inlet Clamp: CLA-025
  • V-Band Outlet Flange (for Downpipe): FLS-094
  • V-Band Outlet Clamp: CLA-026
    •

    NOTE: Alternate coolant and oil fittings and flanges are available.

    APPLICATION NOTES:
    * Compatible turbine housing inlet flange (product code: FLS-191)
    * Compatible turbine housing outlet flange - select 81mm centering ring (product code: FLS-105)
    * Compatible turbine housing inlet clamp (product code: CLA-047)
    * Compatible turbine housing outlet clamp (product code: CLA-048)


    COMPRESSOR & TURBINE MAPS:


    Select Select YES for optional Divided V-Band Entry Turbine Housing
    From $743.35

    Original: $2,477.84

    -70%
    GEN2 Garrett GTX3071R Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-870—

    $2,477.84

    $743.35

    More Images

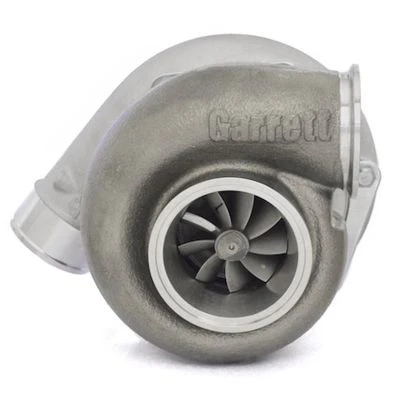

    GEN2 Garrett GTX3071R Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-870 - Image 2

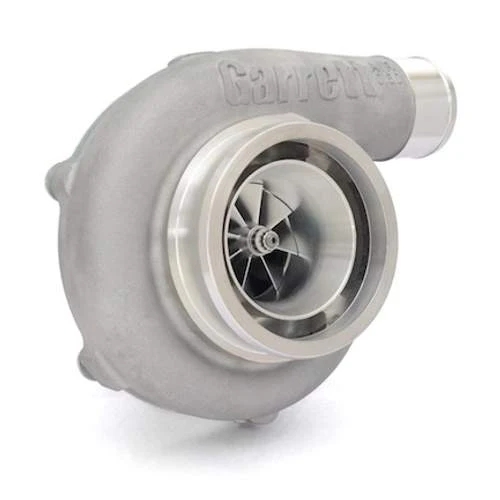

    GEN2 Garrett GTX3071R Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-870 - Image 3

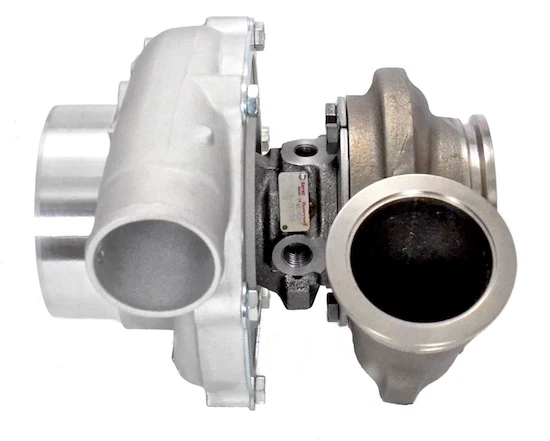

    GEN2 Garrett GTX3071R Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing GRT-TBO-870 - Image 4
