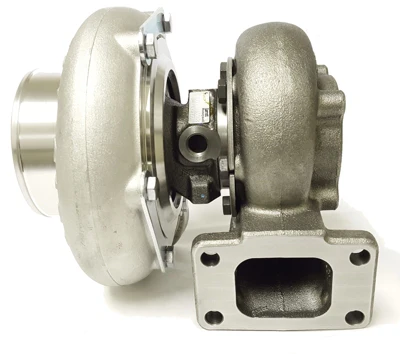

GEN2 Garrett GTX3071R Turbo with .82 A/R T3 Turbine Housing w/ "T31" Narrow 4 bolt exit GRT-TBO-766

PRODUCT DESCRIPTION:

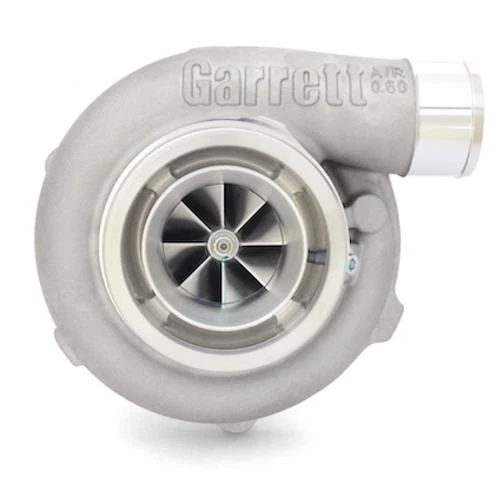

Garrett GEN2 GTX3071R dual ball bearing turbocharger, including T3 Inlet, 4 Bolt (T31 Narrow) Outlet, .82 A/R Turbine Housing (ATP-HSG-055). Advanced GEN2 billet compressor wheel capable of 650HP!


PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel

Forged billet aluminum compressor wheel

Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 54mm

Compressor Wheel Exducer: 71mm

Compressor Wheel Trim: 58

Compressor Housing A/R: 0.60

Turbine Wheel Inducer: 60mm

Turbine Wheel Exducer: 55mm

Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031



T3 Inlet Flange (for Turbo Manifold): FLS-038

T3 Inlet Gasket: GSK-005

4 Bolt "T31" Narrow Outlet Flange (for Downpipe): FLS-084

4 Bolt "T31" Outlet Gasket: GSK-012

NOTE: Alternate coolant and oil fittings and flanges are available.


COMPRESSOR & TURBINE MAPS:
