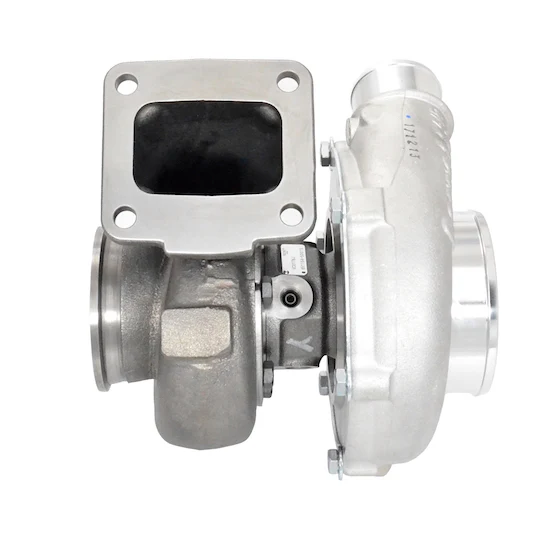

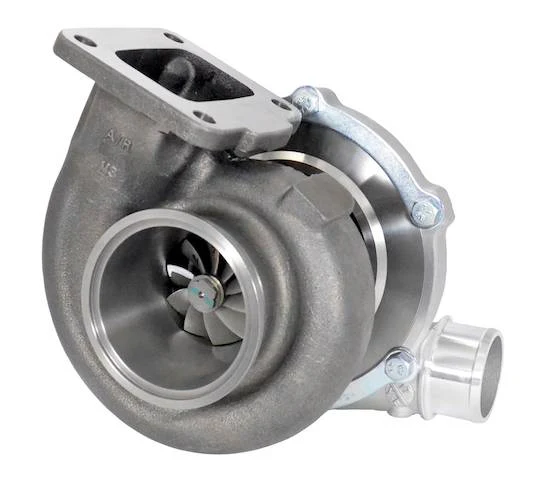

GEN2 Garrett GTX3076R Turbo - 1.06 A/R T4 Turbine Hsg. w/ GT 3" V-Band (conical exit 81mm lip) GRT-TBO-802

PRODUCT DESCRIPTION:

Garrett GEN2 GTX3076R dual ball bearing turbocharger with a .63 A/R T4 Inlet GT 3" V-Band (conical exit - 81mm lip) Turbine Housing. Advanced GEN2 billet compressor wheel capable of 750HP!

Garrett's fastest spooling "T4 frame" 700HP+ GEN2 GTX turbo!!

PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel

Forged billet aluminum compressor wheel

Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 58mm

Compressor Wheel Exducer: 76mm

Compressor Wheel Trim: 58

Compressor Housing: 0.60 A/R T04E, 4" Ported Shroud (anti-surge) Inlet and 2" Outlet

Turbine Wheel Inducer: 60mm

Turbine Wheel Exducer: 55mm

Turbine Wheel Trim: 84

Turbine Housing: .63 A/R T4 Undivided Inlet and GT 3" V-Band Outlet (conical exit - 81mm lip)



INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

T4 Inlet Flange (for Turbo Manifold): FLS-200

T4 Inlet Gasket: GSK-006

V-Band "GT" 3 Inch Outlet Flange (for Downpipe): FLS-246

V-Band Outlet Clamp: CLA-048



NOTE: Alternate coolant and oil fittings and flanges are available.



COMPRESSOR & TURBINE MAPS:
