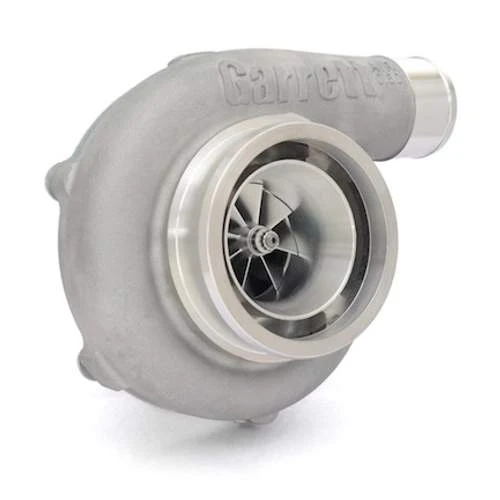

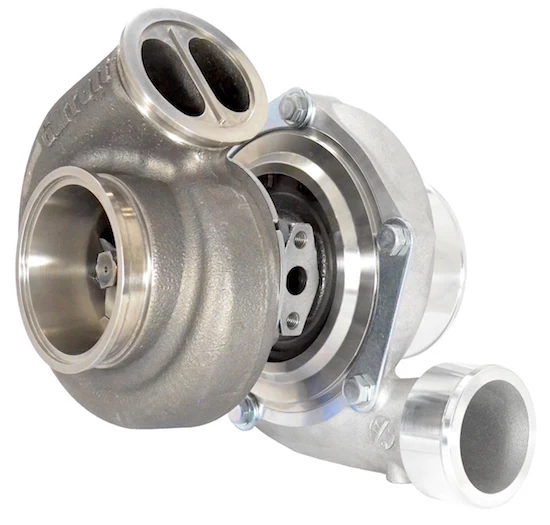

GEN2 Garrett GTX3076R Turbo with .83 A/R Garrett Twin-Scroll V-Band Turbine Housing GRT-TBO-K52

PRODUCT DESCRIPTION:

Garrett GEN2 GTX3076R dual ball bearing turbocharger with a T04E frame (4" inlet and 2" outlet compressor housing) and a .61 A/R Divided (Twin-scroll) V-Band Inlet and GT 3" V-Band outlet turbine housing (Ni-Resist Material). Advanced GEN2 billet compressor wheel capable of 700HP!

The Garrett GEN2 GTX3076R fits turbine housings for Garrett GT30 and GTX30 series turbochargers with a 60mm inducer and 84 trim turbine wheel.

PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel

Forged billet aluminum compressor wheel

Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 58mm

Compressor Wheel Exducer: 76mm

Compressor Wheel Trim: 58

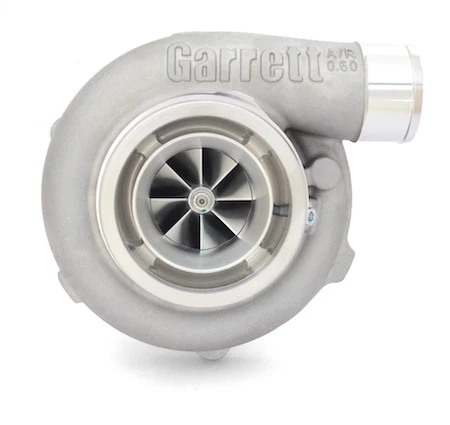

Compressor Housing: T04E Frame (4" Inlet & 2" Outlet) . 60 A/R w/ Gen2 Anti-Surge Shroud

Turbine Wheel Inducer: 60mm

Turbine Wheel Exducer: 55mm

Turbine Wheel Trim: 84

Turbine Housing: .61 A/R Divided (Twin-Scroll) Inlet & GT 3" V-Band Outlet





INSTALLATION HARDWARE:



Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

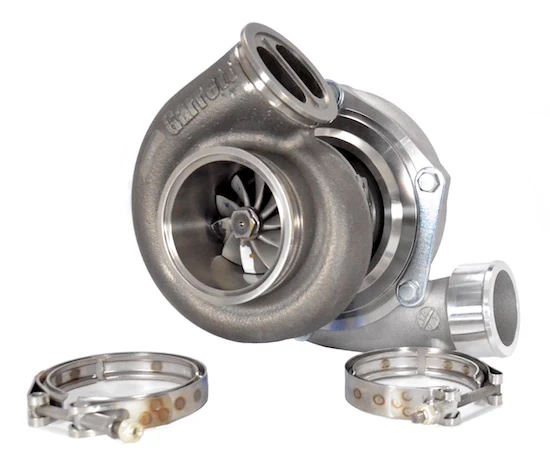

V-Band Inlet Clamp: (product code: CLA-047

V-Band Outlet Clamp: (product code: CLA-048

GT 3" V-Band Outlet Flange (for Downpipe): FLS-246

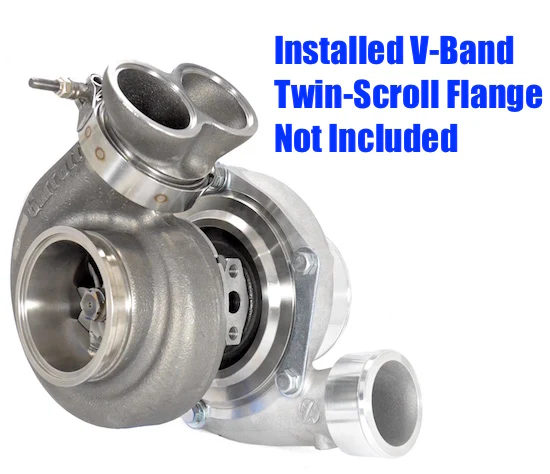

Divided V-Band Inlet Flange (for Turbo Manifold): HSG-250



NOTE: Alternate coolant and oil fittings and flanges are available.


COMPRESSOR & TURBINE MAPS:
