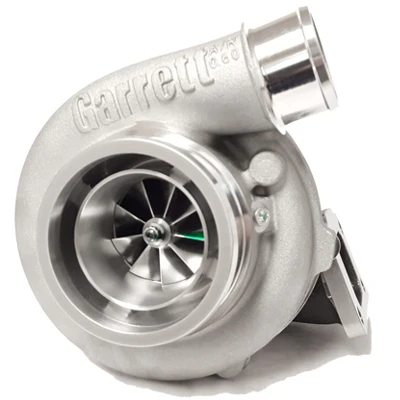

Gen2 GTX3071R DBB turbo w/ 1.06 A/R T3 Tbn Hsg GT 4 Bolt 3" conical exit GRT-TBO-C29

Product Description:

Garrett GEN2 GTX3071R dual ball bearing turbocharger with 1.06 A/R T3 turbine housing and GT 4 BOLT 3" conical exit. Advanced GEN2 billet compressor wheel capable of 650HP!

Product Features:

• Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
• Forged billet aluminum compressor wheel
• Dual ball bearing CHRA rotating assembly

Product Specifications:

• Compressor Wheel Inducer: 54mm
• Compressor Wheel Exducer: 71mm
• Compressor Wheel Trim: 58
• Compressor Housing A/R: 0.60
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84



INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

T3 Inlet Flange (for Turbo Manifold): FLS-038

T3 Inlet Gasket: GSK-005

Discharge Flange GT 4 Bolt 3" (Stainless Steel): FLS-085

Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: GSK-018

NOTE: Alternate coolant and oil fittings and flanges are available.

COMPRESSOR & TURBINE MAPS:
