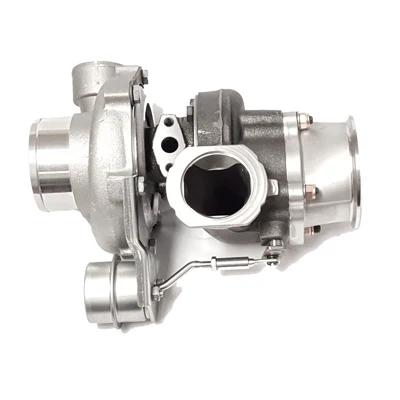

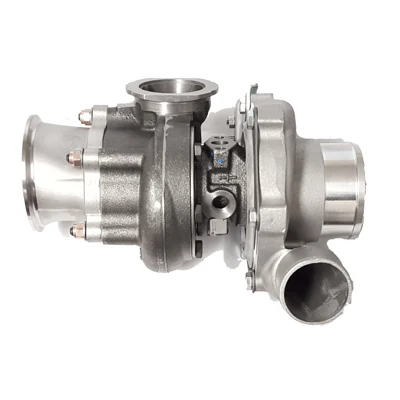

Gen2 GTX3076R 4" inlet and 2" outlet T04E Frame with Anti-Surge DBB turbo w/ .86 A/R VB25 int. wg.

Product Description:

Garrett GEN2 GTX3076R anti-surge 4" inlet and 2" outlet T04E frame dual ball bearing turbocharger with .86 A/R VB25 internally gated (1 bar actuator) "GT28 style" 5 bolt into 3" v-band turbine housing.

Advanced GEN2 billet compressor wheel capable of 750HP!

Product Features:

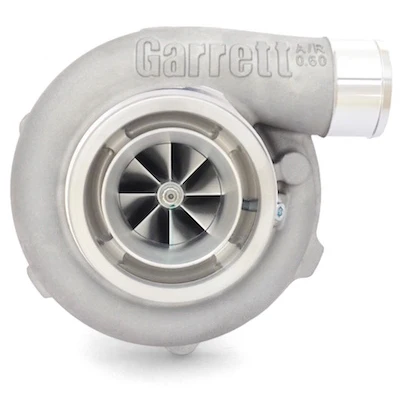

• Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
• Forged billet aluminum compressor wheel
• Dual ball bearing CHRA rotating assembly

Product Specifications:

• Compressor Wheel Inducer: 58 mm
• Compressor Wheel Exducer: 76 mm
• Compressor Wheel Trim: 58
• Compressor Housing A/R: 0.60
• Turbine Wheel Inducer: 60 mm
• Turbine Wheel Exducer: 55 mm
• Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

V-Band Inlet Flange (for Turbo Manifold): FLS-093

V-Band Inlet Clamp: CLA-025

3" Stainless V-Band Flange (for Downpipe): FLS-063

3" Stainless V-Band Clamp: CLA-013



NOTE: Alternate coolant and oil fittings and flanges are available.


COMPRESSOR & TURBINE MAPS:
