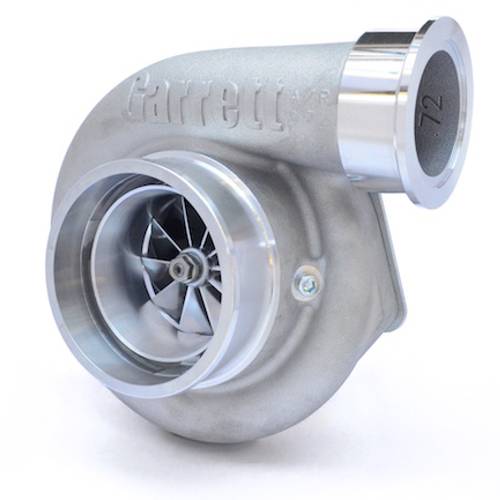

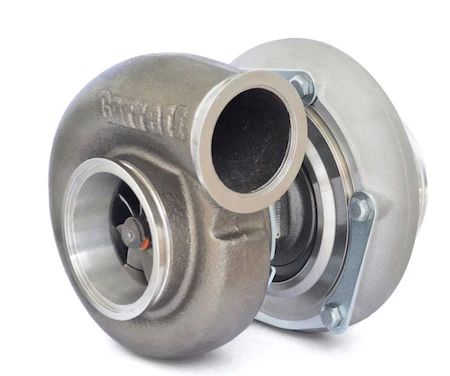

Gen2 GTX3584RS w/ Garrett turbine V-band hsg, 1.21 A/R, Comp V-band Connection GRT-TBO-C12

Product Description:

Gen2 GTX3584RS with a Garrett turbine v-band housing, 1.21 A/R. Configured with a v-band compressor outlet connection.

• Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
• Ultra high flow "RS" blade profile turbine wheel
• Dual ball bearing CHRA rotating assembly
• Compact package capable of 1,000 HP

Product Specifications:

• Compressor Wheel Inducer: 67 mm
• Compressor Wheel Exducer: 84 mm
• Compressor Wheel Trim: 64
• Compressor Housing: T04S Frame with a 4" inlet and 2.5" v-band outlet w/ Anti-Surge
• Turbine Wheel Inducer: 68 mm
• Turbine Wheel Exducer: 62 mm
• Turbine Wheel Trim: 84
• Turbine Housing: 1.21 A/R with v-band Inlet/Outlet

INSTALLATION HARDWARE:



Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

V-Band Inlet Clamp: CLA-047

3 Inch GT V-Band Clamp: CLA-048

GT 3" V-Band Outlet Flange (for Downpipe): FLS-246

V-Band Inlet Flange (for Turbo Manifold): FLS-191

Compressor Housing Outlet V-Band Flange (Charge Pipe Side): FLS-240

Compressor Housing Outlet V-Band Clamp: CLA-053



NOTE: Alternate coolant and oil fittings and flanges are available.

Compressor & Turbine Maps:
