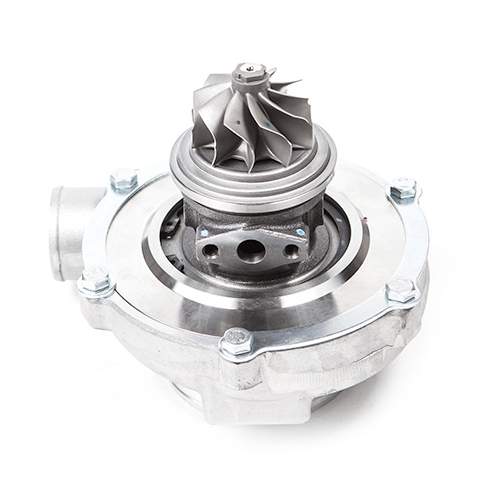

Supercore, Garrett, Gen2 GTX3076R, P/N: 851154-5001S GRT-TBO-M36

PRODUCT DESCRIPTION:

Garrett GEN2 GTX3076R dual ball bearing SuperCore (P/N: 851154-5001S) with ultra high flow Gen2 compressor wheel. NO TURBINE HOUSING (Supercore). Advanced GEN2 billet compressor wheel capable of 750HP!

PRODUCT FEATURES:

• Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
• Forged billet aluminum compressor wheel
• Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

• Compressor Wheel Inducer: 58 mm
• Compressor Wheel Exducer: 76 mm
• Compressor Wheel Trim: 58
• Compressor Housing A/R: 0.60
• Turbine Wheel Inducer: 60 mm
• Turbine Wheel Exducer: 55 mm
• Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008



NOTE: Alternate coolant and oil fittings and flanges are available.

COMPRESSOR & TURBINE MAPS:
