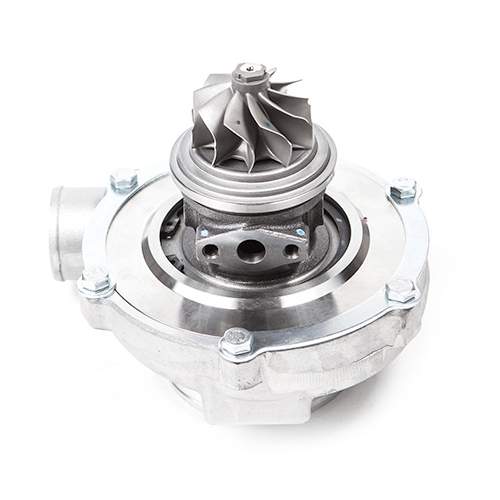

Supercore, Garrett, Gen2 GTX3584RS, P/N: 846098-5001S, HOSE CONNECTION GRT-TBO-M39

PRODUCT DESCRIPTION:

Garrett GEN2 GTX3584RS dual ball bearing SuperCore (P/N: 846098-5001S) with ultra high flow Gen2 compressor wheel. NO TURBINE HOUSING (Supercore). HOSE CONNECTION compressor housing. Advanced GEN2 billet compressor wheel capable of 1000HP!

PRODUCT FEATURES:

• Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
• Forged billet aluminum compressor wheel
• Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

• Compressor Wheel Inducer: 67 mm
• Compressor Wheel Exducer: 84 mm
• Compressor Wheel Trim: 64
• Turbine Wheel Inducer: 68 mm
• Turbine Wheel Exducer: 62 mm
• Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008



NOTE: Alternate coolant and oil fittings are available.



COMPRESSOR & TURBINE MAPS:
