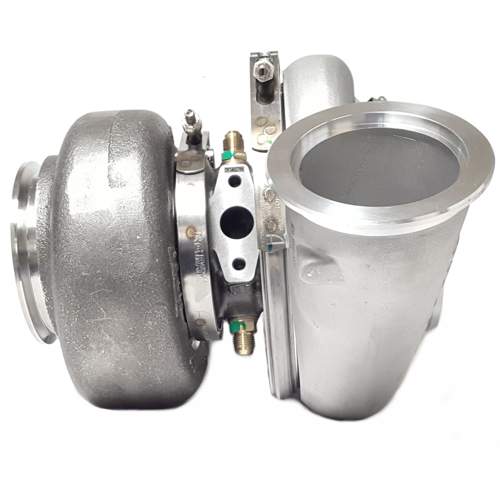

Turbo Assembly Kit, G42-1450, T4 Divided 1.28 A/R, Garrett P/N 879779-5018S GRT-TBO-K22

Product Description:

Garrett® G42-1450 turbo assembly kit with 1.28 A/R T4 divided turbine housing. Capable of 1450HP!

Product Features:

• Quick spooling, high horsepower solution for 2.0 liter up to 8.0 liter engine platforms
• Ten blade, forged, fully-machined G Series compressor wheel with high flowing aero
• Low inertia compressor wheel resulting in faster boost response
• New turbine aero wheel flows 10% more and has peak efficiency of 77% (Compared to GTX42 at 74% with 1.01A/R)
• Engineered with inconel super alloy to withstand operating temperatures up to 950C

Product Specifications:

• Compressor Wheel Inducer: 79mm
• Compressor Wheel Exducer: 98mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.85
• Turbine Wheel Inducer: 82mm
• Turbine Wheel Exducer: 75mm
• Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

Coolant - Water Options (Requires 2 units): *Please call for assistance*

Oil feed flange (-4 AN with built-in Restrictor): FLA-040

Oil feed gasket: GSK-011

Oil drain flange: FLA-009

Oil drain gasket: GSK-007

T4 Turbine Inlet Flange, Divided, Stainless: FLS-057 (Mild steel option)

Gasket, T4 (T04) Turbine Inlet - DIVIDED: GSK-014

V-Band Outlet Flange (for Downpipe): FLS-378

V-Band Outlet Clamp: CLA-294

NOTE: Alternate coolant and oil fittings and flanges are available.

Compressor & Turbine Maps:
