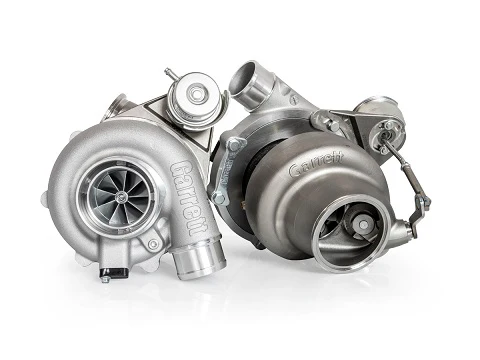

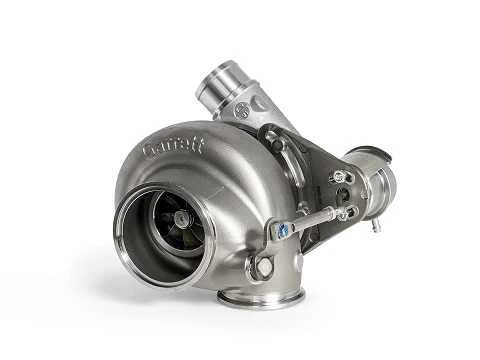

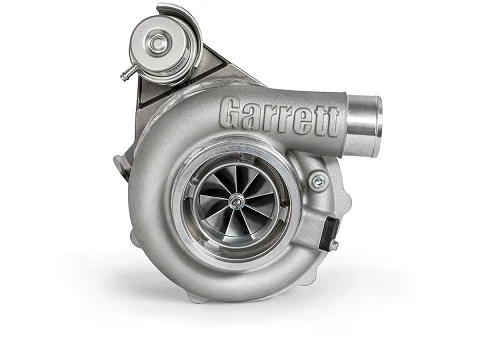

Turbo, Garrett G35-1050, STANDARD ROTATION, 1.01 A/R INTERNAL W/G, V-Band In/Out, P/N 880707-5006S GRT-TBO-P14

Product Description:

Garrett® G35-1050 standard rotation turbo assembly kit with 4" inlet and 2.5" outlet compressor housing and 1.01 A/R O/V, v-band in/out INTERNALLY WASTEGATED turbine housing.

Product Features:

• New G Series compressor wheel aerodynamics
• Fully machined speed sensor and pressure ports
• Standard and reverse rotation configurations available
• Oil restrictor and water fittings included with purchase
• One piece center housing and backplate for increased durability
• 4 water jacket ports for customizable installation
• Mar-M turbine wheel material rated up to 1050° C | 1922° F
• Stainless steel turbine housings for temperatures up to 1050° C | 1922° F

Product Specifications:

• Compressor Wheel Inducer: 68mm
• Compressor Wheel Exducer: 84mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.72
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
• Turbine Housing Inlet: 3 Inch O.D. V-Band
• Turbine Housing Outlet: 3.55 inch O.D. V-Band
• Includes Oil Feed (1mm) Restrictor Fitting to -4AN
• Includes two Coolant Fittings to -6AN
• Includes Turbine Housing Inlet & Outlet V-Band Clamps

INSTALLATION HARDWARE:



Inlet V-Band Flange (For Turbo Manifold): FLS-350

Out V-Band Flange (For Down-pipe): FLS-351

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

Oil drain fasteners: FST-034

Boost Pressure Port Fitting: FTG-198

Speed Sensor Kit: ACS-032



NOTE: Alternate coolant and oil fittings and flanges are available.

Compressor & Turbine Maps:
