Turbocharger, G-Series G25-660, .92 A/R T3 inlet, V-band outlet turbine housing GRT-TBO-K88
HomeStore

Turbocharger, G-Series G25-660, .92 A/R T3 inlet, V-band outlet turbine housing GRT-TBO-K88

Turbocharger, G-Series G25-660, .92 A/R T3 inlet, V-band outlet turbine housing GRT-TBO-K88

Product Description:

Garrett G-Series G25-660 advanced small frame ball bearing turbocharger with a .92 A/R T3 inlet and v-band outlet turbine housing. 660HP from a small frame package!

    • Ultra High Flow G-Series Compressor Wheel
    • Revolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
    • Includes -4AN oil feed fitting and -6AN coolant/water fittings
Product Specifications:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 67mm
  • Compressor Wheel Trim: 65
  • Compressor Housing Inlet: 3 Inch Diameter
  • Compressor Housing Outlet: 2 Inch Diameter
  • Compressor Housing A/R: .70
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 49mm
  • Turbine Wheel Trim: 84
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN

Installation Hardware:

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • Out V-Band Flange (For Down-pipe): FLS-351
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032

    • Compressor & Turbine Maps:





    Select Optional Selection:
    Select Alternate Selection:
    From $770.35

    Original: $2,567.82

    -70%
    Turbocharger, G-Series G25-660, .92 A/R T3 inlet, V-band outlet turbine housing GRT-TBO-K88—

    $2,567.82

    $770.35

    More Images

    Turbocharger, G-Series G25-660, .92 A/R T3 inlet, V-band outlet turbine housing GRT-TBO-K88 - Image 2

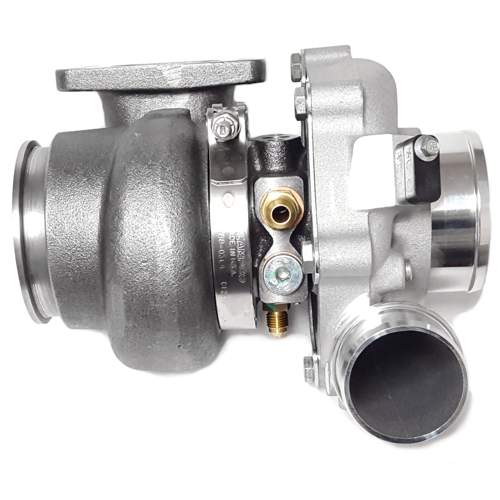

    Turbocharger, G-Series G25-660, .92 A/R T3 inlet, V-band outlet turbine housing GRT-TBO-K88 - Image 3

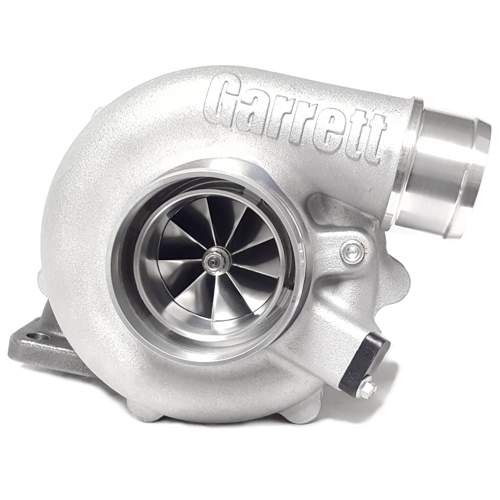

    Turbocharger, G-Series G25-660, .92 A/R T3 inlet, V-band outlet turbine housing GRT-TBO-K88 - Image 4
