Turbocharger, Garrett G30-900, STANDARD ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880697-5015S GRT-TBO-L48

Turbocharger, Garrett G30-900, STANDARD ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880697-5015S GRT-TBO-L48

Product Description:
      Garrett® G30-900 standard turbo assembly kit, 0.61 A/R O/V, V-Band In/Out.


Product Features:
  • New G Series compressor wheel aerodynamics
  • Fully machined speed sensor and pressure ports
  • Standard and reverse rotation configurations available
  • Oil restrictor and water fittings included with purchase
  • One piece center housing and backplate for increased durability
  • 4 water jacket ports for customizable installation
  • Mar-M turbine wheel material rated up to 1050° C | 1922° F
  • Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
Product Specifications:
  • Compressor Wheel Inducer: 62mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch (90mm)O.D. w/81mm centering ring V-Band
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN
  • Includes Turbine Housing Inlet & Outlet V-Band Clamps

INSTALLATION HARDWARE:



  • Inlet V-Band Flange (For Turbo Manifold): FLS-350
  • Out V-Band Flange (For Down-pipe): FLS-351
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032

    •

    NOTE: Alternate coolant and oil fittings and flanges are available.



    Compressor & Turbine Maps:





    $810.87

    Original: $2,702.91

    -70%
    Turbocharger, Garrett G30-900, STANDARD ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880697-5015S GRT-TBO-L48—

    $2,702.91

    $810.87

    More Images

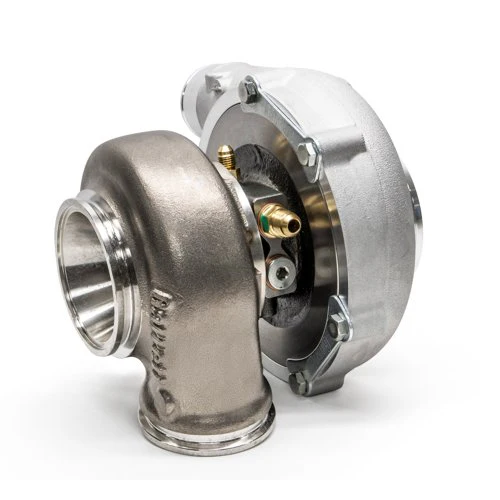

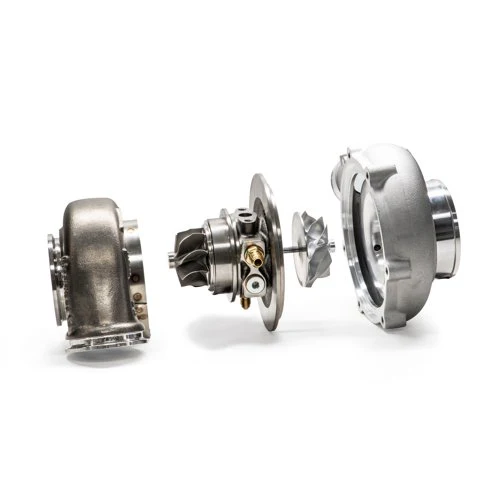

    Turbocharger, Garrett G30-900, STANDARD ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880697-5015S GRT-TBO-L48 - Image 2
    Turbocharger, Garrett G30-900, STANDARD ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880697-5015S GRT-TBO-L48 - Image 3
    Turbocharger, Garrett G30-900, STANDARD ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880697-5015S GRT-TBO-L48 - Image 4

    Turbocharger, Garrett G30-900, STANDARD ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880697-5015S GRT-TBO-L48

    Product Description:
        Garrett® G30-900 standard turbo assembly kit, 0.61 A/R O/V, V-Band In/Out.


    Product Features:
    • New G Series compressor wheel aerodynamics
    • Fully machined speed sensor and pressure ports
    • Standard and reverse rotation configurations available
    • Oil restrictor and water fittings included with purchase
    • One piece center housing and backplate for increased durability
    • 4 water jacket ports for customizable installation
    • Mar-M turbine wheel material rated up to 1050° C | 1922° F
    • Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
    Product Specifications:
    • Compressor Wheel Inducer: 62mm
    • Compressor Wheel Exducer: 76mm
    • Compressor Wheel Trim: 65
    • Compressor Housing A/R: 0.72
    • Turbine Wheel Inducer: 60mm
    • Turbine Wheel Exducer: 55mm
    • Turbine Wheel Trim: 84
    • Turbine Housing Inlet: 3 Inch O.D. V-Band
    • Turbine Housing Outlet: 3.55 inch (90mm)O.D. w/81mm centering ring V-Band
    • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
    • Includes two Coolant Fittings to -6AN
    • Includes Turbine Housing Inlet & Outlet V-Band Clamps

    INSTALLATION HARDWARE:



  • Inlet V-Band Flange (For Turbo Manifold): FLS-350
  • Out V-Band Flange (For Down-pipe): FLS-351
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032

    •

    NOTE: Alternate coolant and oil fittings and flanges are available.



    Compressor & Turbine Maps:
