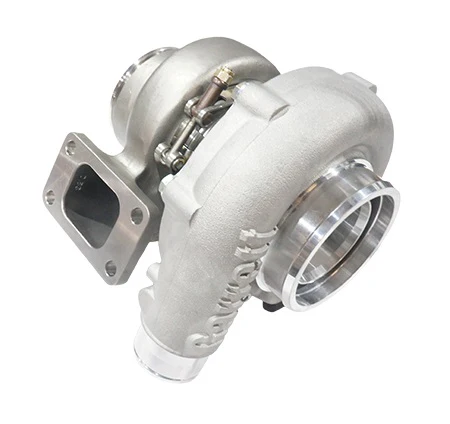

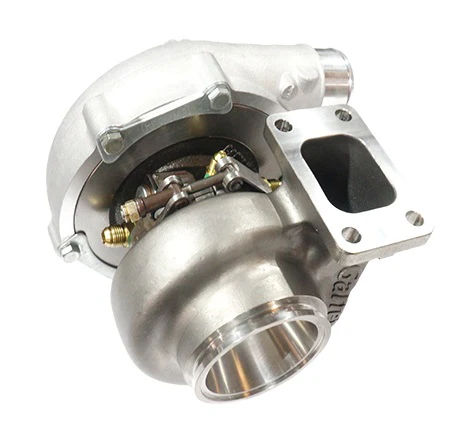

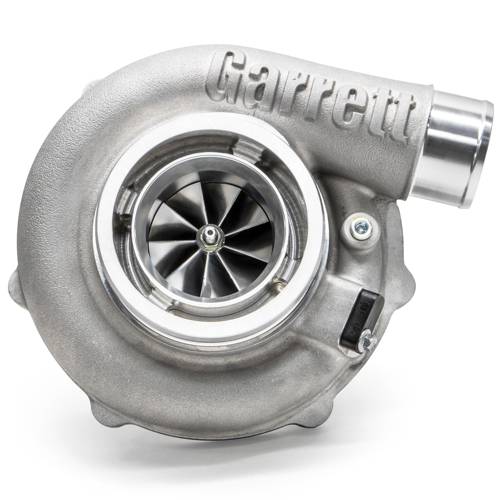

Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT GRT-TBO-N85

Product Description:

Garrett® G35-900 standard rotation turbo assembly kit with 4" inlet and 2" outlet compressor housing and 1.01 A/R O/V, Undivided T3 Entry/V-Band outlet turbine housing.

Product Features:

• New G Series compressor wheel aerodynamics
• Fully machined speed sensor and pressure ports
• Standard and reverse rotation configurations available
• Oil restrictor and water fittings included with purchase

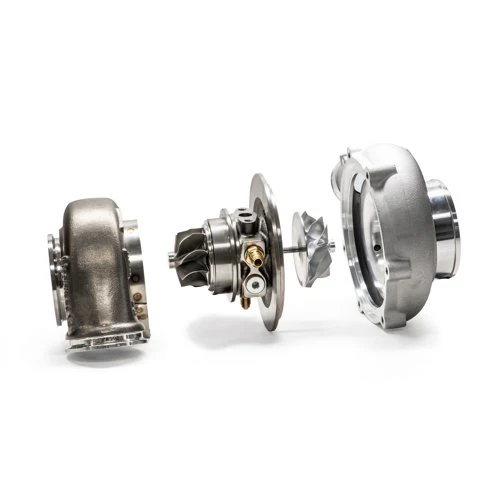

• One piece center housing and backplate for increased durability
• 4 water jacket ports for customizable installation
• Mar-M turbine wheel material rated up to 1050° C | 1922° F
• Stainless steel turbine housings for temperatures up to 1050° C | 1922° F

Product Specifications:

• Compressor Wheel Inducer: 62mm
• Compressor Wheel Exducer: 76mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.72
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
• Turbine Housing Inlet: T3 Open(undivided) inlet (same flange size and placement as GTX)
• Turbine Housing Outlet: 3.55 inch (90mm)O.D. w/81mm centering ring V-Band
• Includes Oil Feed (1mm) Restrictor Fitting to -4AN
• Includes two Coolant Fittings to -6AN

Installation Hardware:

• Out V-Band Flange (For Down-pipe): FLS-351
• Out V-Band Clamp (For Down-pipe): CLA-048
• T3 Inlet Gasket: GSK-005
• Oil drain flange: FLA-010
• Oil drain gasket: GSK-008
• Oil drain fasteners: FST-034
• Boost Pressure Port Fitting: FTG-198

• Speed Sensor Kit: ACS-032
