Turbocharger, Gen2 GTX3071R DBB with RB25DET T3 6 bolt exit turbine hsg w/ 1 bar int wgt. actuator GRT-TBO-J22

Turbocharger, Gen2 GTX3071R DBB with RB25DET T3 6 bolt exit turbine hsg w/ 1 bar int wgt. actuator GRT-TBO-J22

Product Description:
    Garrett GEN2 GTX3071R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 Bar internal wastegate actuator. Advanced GEN2 billet compressor wheel capable of 650HP!
Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:

NOTE: Alternate coolant and oil fittings and flanges, sold separately, are needed to connect the GT/GTX turbo.

COMPRESSOR & TURBINE MAPS:


    Select Optional Selection:
    From $709.12

    Original: $2,363.73

    -70%
    Turbocharger, Gen2 GTX3071R DBB with RB25DET T3 6 bolt exit turbine hsg w/ 1 bar int wgt. actuator GRT-TBO-J22—

    $2,363.73

    $709.12

    More Images

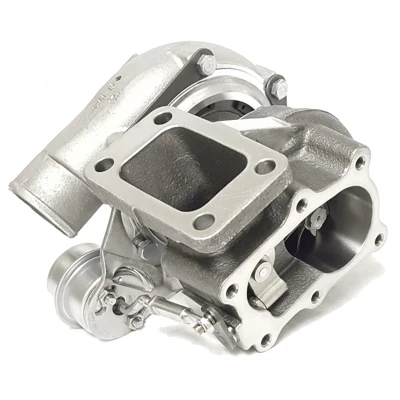

    Turbocharger, Gen2 GTX3071R DBB with RB25DET T3 6 bolt exit turbine hsg w/ 1 bar int wgt. actuator GRT-TBO-J22 - Image 2

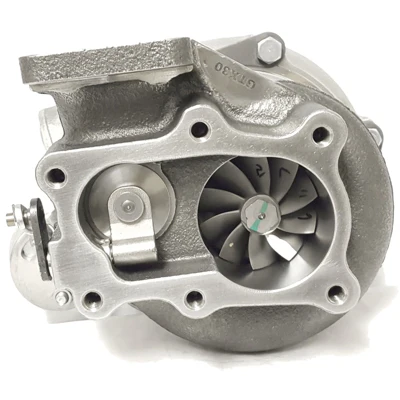

    Turbocharger, Gen2 GTX3071R DBB with RB25DET T3 6 bolt exit turbine hsg w/ 1 bar int wgt. actuator GRT-TBO-J22 - Image 3

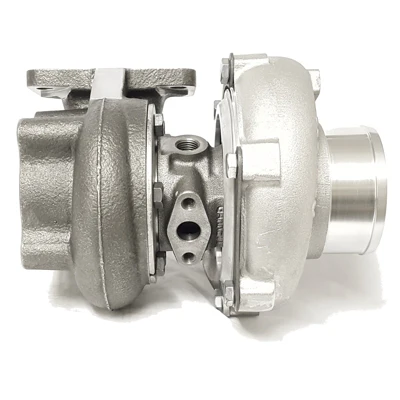

    Turbocharger, Gen2 GTX3071R DBB with RB25DET T3 6 bolt exit turbine hsg w/ 1 bar int wgt. actuator GRT-TBO-J22 - Image 4

    Turbocharger, Gen2 GTX3071R DBB with RB25DET T3 6 bolt exit turbine hsg w/ 1 bar int wgt. actuator GRT-TBO-J22

    Product Description:
      Garrett GEN2 GTX3071R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 Bar internal wastegate actuator. Advanced GEN2 billet compressor wheel capable of 650HP!
    Product Features:
    • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
    • Forged billet aluminum compressor wheel
    • Dual ball bearing CHRA rotating assembly
    Product Specifications:
    • Compressor Wheel Inducer: 54mm
    • Compressor Wheel Exducer: 71mm
    • Compressor Wheel Trim: 58
    • Compressor Housing A/R: 0.60
    • Turbine Wheel Inducer: 60mm
    • Turbine Wheel Exducer: 55mm
    • Turbine Wheel Trim: 84
    Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:

    NOTE: Alternate coolant and oil fittings and flanges, sold separately, are needed to connect the GT/GTX turbo.

    COMPRESSOR & TURBINE MAPS:
