Gen2 GTX3076R Turbocharger DBB, w/ .63 A/R T3 5 bolt (ford style) exit GRT-TBO-L26
HomeStore

Gen2 GTX3076R Turbocharger DBB, w/ .63 A/R T3 5 bolt (ford style) exit GRT-TBO-L26

Gen2 GTX3076R Turbocharger DBB, w/ .63 A/R T3 5 bolt (ford style) exit GRT-TBO-L26

PRODUCT DESCRIPTION:
    Garrett GEN2 GTX3076R dual ball bearing turbocharger with a .63 A/R T3 5 bolt (Ford Style) exit turbine housing. Advanced GEN2 billet compressor wheel capable of 750HP!
PRODUCT FEATURES:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 58 mm
  • Compressor Wheel Exducer: 76 mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60 mm
  • Turbine Wheel Exducer: 55 mm
  • Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • Gasket, T3 Turbine Inlet - UNDIVIDED: GSK-005
  • T3 5 Bolt (Ford Style) Discharge flange (stainless): Product Code: FLS-036 (FLS-035 - mild steel)
  • Gasket for T3 5 Bolt (Ford Style) Turbine Outlet Flange (Externally Gated): Product Code: GSK-019

    •

    NOTE: Alternate coolant and oil fittings and flanges and wastegate actuators are available.



    COMPRESSOR & TURBINE MAPS:



    $724.60

    Original: $2,415.34

    -70%
    Gen2 GTX3076R Turbocharger DBB, w/ .63 A/R T3 5 bolt (ford style) exit GRT-TBO-L26—

    $2,415.34

    $724.60

    More Images

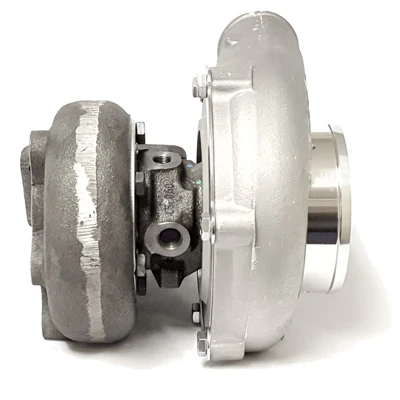

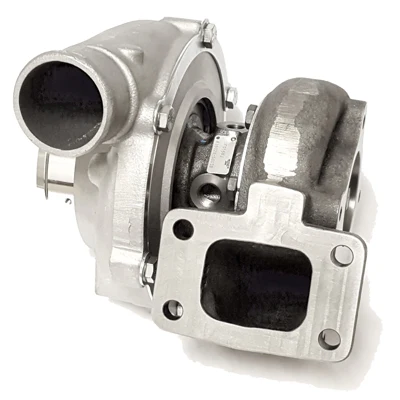

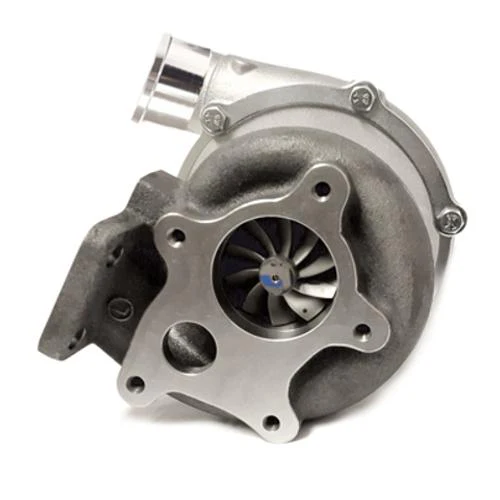

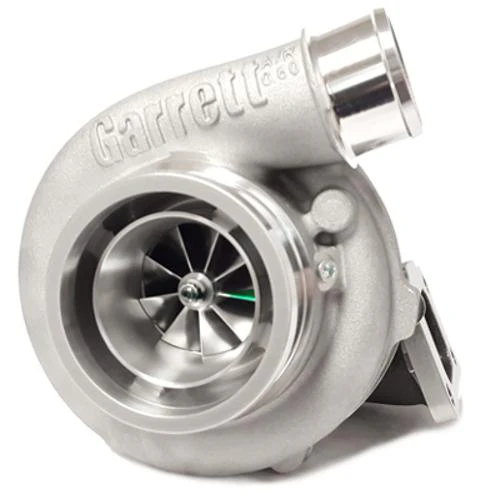

    Gen2 GTX3076R Turbocharger DBB, w/ .63 A/R T3 5 bolt (ford style) exit GRT-TBO-L26 - Image 2
    Gen2 GTX3076R Turbocharger DBB, w/ .63 A/R T3 5 bolt (ford style) exit GRT-TBO-L26 - Image 3
    Gen2 GTX3076R Turbocharger DBB, w/ .63 A/R T3 5 bolt (ford style) exit GRT-TBO-L26 - Image 4

    Gen2 GTX3076R Turbocharger DBB, w/ .63 A/R T3 5 bolt (ford style) exit GRT-TBO-L26

    PRODUCT DESCRIPTION:
      Garrett GEN2 GTX3076R dual ball bearing turbocharger with a .63 A/R T3 5 bolt (Ford Style) exit turbine housing. Advanced GEN2 billet compressor wheel capable of 750HP!
    PRODUCT FEATURES:
    • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
    • Forged billet aluminum compressor wheel
    • Dual ball bearing CHRA rotating assembly
    PRODUCT SPECIFICATIONS:
    • Compressor Wheel Inducer: 58 mm
    • Compressor Wheel Exducer: 76 mm
    • Compressor Wheel Trim: 58
    • Compressor Housing A/R: 0.60
    • Turbine Wheel Inducer: 60 mm
    • Turbine Wheel Exducer: 55 mm
    • Turbine Wheel Trim: 84

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • Gasket, T3 Turbine Inlet - UNDIVIDED: GSK-005
  • T3 5 Bolt (Ford Style) Discharge flange (stainless): Product Code: FLS-036 (FLS-035 - mild steel)
  • Gasket for T3 5 Bolt (Ford Style) Turbine Outlet Flange (Externally Gated): Product Code: GSK-019

    •

    NOTE: Alternate coolant and oil fittings and flanges and wastegate actuators are available.



    COMPRESSOR & TURBINE MAPS:



    Product Information

    Shipping & Returns

    Description

    PRODUCT DESCRIPTION:
      Garrett GEN2 GTX3076R dual ball bearing turbocharger with a .63 A/R T3 5 bolt (Ford Style) exit turbine housing. Advanced GEN2 billet compressor wheel capable of 750HP!
    PRODUCT FEATURES:
    • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
    • Forged billet aluminum compressor wheel
    • Dual ball bearing CHRA rotating assembly
    PRODUCT SPECIFICATIONS:
    • Compressor Wheel Inducer: 58 mm
    • Compressor Wheel Exducer: 76 mm
    • Compressor Wheel Trim: 58
    • Compressor Housing A/R: 0.60
    • Turbine Wheel Inducer: 60 mm
    • Turbine Wheel Exducer: 55 mm
    • Turbine Wheel Trim: 84

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • Gasket, T3 Turbine Inlet - UNDIVIDED: GSK-005
  • T3 5 Bolt (Ford Style) Discharge flange (stainless): Product Code: FLS-036 (FLS-035 - mild steel)
  • Gasket for T3 5 Bolt (Ford Style) Turbine Outlet Flange (Externally Gated): Product Code: GSK-019

    •

    NOTE: Alternate coolant and oil fittings and flanges and wastegate actuators are available.



    COMPRESSOR & TURBINE MAPS:
