Turbocharger, Gen2 GTX3584RS w/ T3 UND T31 NARROW 4BOLT .63 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J38

Turbocharger, Gen2 GTX3584RS w/ T3 UND T31 NARROW 4BOLT .63 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J38

Turbocharger, Gen2 GTX3584RS w/ T3 UND T31 NARROW 4BOLT .63 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J38

Product Description:

Garrett Gen2 GTX3584RS with .63 A/R T3 undivided T31 narrow 4 bolt exit turbine housing and hose connection compressor housing. Compact package capable of 1,000 HP.

Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
Ultra high flow "RS" blade profile turbine wheel
Dual ball bearing CHRA rotating assembly
Compact package capable of 1,000 HP

Product Specifications:

Compressor Wheel Inducer: 67 mm
Compressor Wheel Exducer: 84 mm
Compressor Wheel Trim: 64
Compressor Housing: T04S Frame with a 4" inlet and 2.5" v-band outlet w/ Anti-Surge
Turbine Wheel Inducer: 68 mm
Turbine Wheel Exducer: 62 mm
Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

T3 Inlet Flange (for Turbo Manifold): FLS-038

T3 Inlet Gasket: GSK-005

Discharge Flange GT 4 Bolt 3" (Stainless Steel): FLS-085 (FLS-013 -mild steel)

Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: GSK-018

NOTE: Alternate coolant and oil fittings and flanges are available.

Compressor & Turbine Maps:

$3,005.78

Turbocharger, Gen2 GTX3584RS w/ T3 UND T31 NARROW 4BOLT .63 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J38—

$3,005.78

More Images

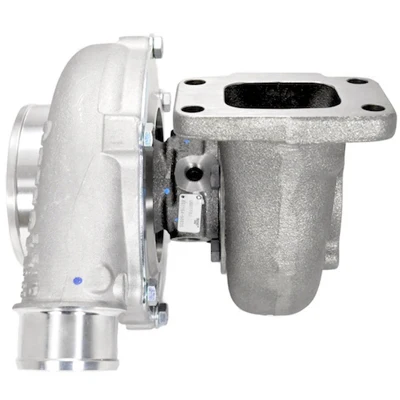

Turbocharger, Gen2 GTX3584RS w/ T3 UND T31 NARROW 4BOLT .63 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J38 - Image 2

Turbocharger, Gen2 GTX3584RS w/ T3 UND T31 NARROW 4BOLT .63 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J38 - Image 3

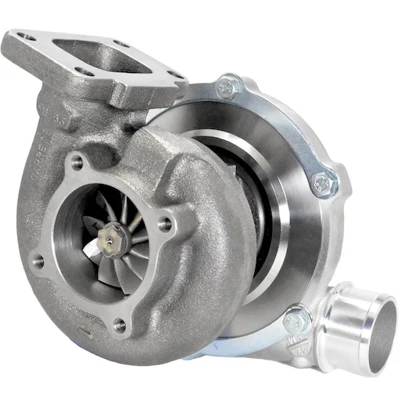

Turbocharger, Gen2 GTX3584RS w/ T3 UND T31 NARROW 4BOLT .63 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J38

Product Description:

Garrett Gen2 GTX3584RS with .63 A/R T3 undivided T31 narrow 4 bolt exit turbine housing and hose connection compressor housing. Compact package capable of 1,000 HP.

Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
Ultra high flow "RS" blade profile turbine wheel
Dual ball bearing CHRA rotating assembly
Compact package capable of 1,000 HP

Product Specifications:

Compressor Wheel Inducer: 67 mm
Compressor Wheel Exducer: 84 mm
Compressor Wheel Trim: 64
Compressor Housing: T04S Frame with a 4" inlet and 2.5" v-band outlet w/ Anti-Surge
Turbine Wheel Inducer: 68 mm
Turbine Wheel Exducer: 62 mm
Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

T3 Inlet Flange (for Turbo Manifold): FLS-038

T3 Inlet Gasket: GSK-005

Discharge Flange GT 4 Bolt 3" (Stainless Steel): FLS-085 (FLS-013 -mild steel)

Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: GSK-018

NOTE: Alternate coolant and oil fittings and flanges are available.

Compressor & Turbine Maps:

Product Information

Shipping & Returns

Description

Product Description:

Garrett Gen2 GTX3584RS with .63 A/R T3 undivided T31 narrow 4 bolt exit turbine housing and hose connection compressor housing. Compact package capable of 1,000 HP.

Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
Ultra high flow "RS" blade profile turbine wheel
Dual ball bearing CHRA rotating assembly
Compact package capable of 1,000 HP

Product Specifications:

Compressor Wheel Inducer: 67 mm
Compressor Wheel Exducer: 84 mm
Compressor Wheel Trim: 64
Compressor Housing: T04S Frame with a 4" inlet and 2.5" v-band outlet w/ Anti-Surge
Turbine Wheel Inducer: 68 mm
Turbine Wheel Exducer: 62 mm
Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

T3 Inlet Flange (for Turbo Manifold): FLS-038

T3 Inlet Gasket: GSK-005

Discharge Flange GT 4 Bolt 3" (Stainless Steel): FLS-085 (FLS-013 -mild steel)

Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: GSK-018

NOTE: Alternate coolant and oil fittings and flanges are available.

Compressor & Turbine Maps:
