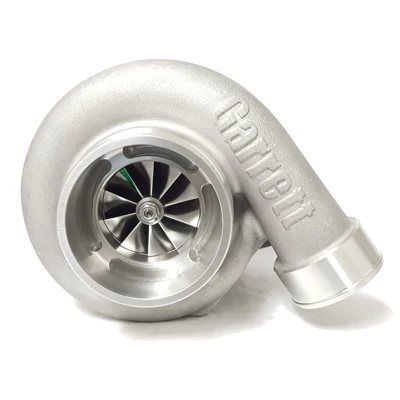

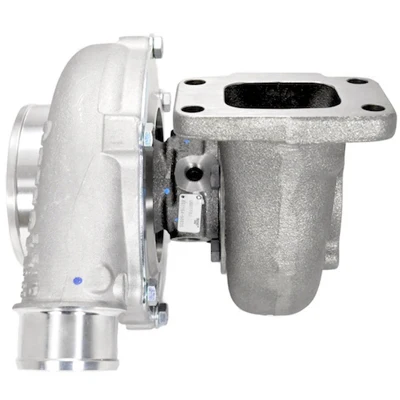

Turbocharger, Gen2 GTX3584RS w/ T3 UND T31 NARROW VBAND .63 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J40

Product Description:

Garrett Gen2 GTX3584RS with .63 A/R T3 undivided T31 narrow v-band turbine housing and hose connection compressor housing. Compact package capable of 1,000 HP.

• Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
• Ultra high flow "RS" blade profile turbine wheel
• Dual ball bearing CHRA rotating assembly
• Compact package capable of 1,000 HP

Product Specifications:

• Compressor Wheel Inducer: 67 mm
• Compressor Wheel Exducer: 84 mm
• Compressor Wheel Trim: 64
• Compressor Housing: T04S Frame with a 4" inlet and 2.5" v-band outlet w/ Anti-Surge
• Turbine Wheel Inducer: 68 mm
• Turbine Wheel Exducer: 62 mm
• Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

T3 Inlet Flange (for Turbo Manifold): FLS-038

T3 Inlet Gasket: GSK-005

V-Band "T31" Narrow Outlet Flange (for Downpipe): FLS-099

V-Band Outlet Clamp: CLA-012

 NOTE: Alternate coolant and oil fittings and flanges are available.


COMPRESSOR & TURBINE MAPS:
