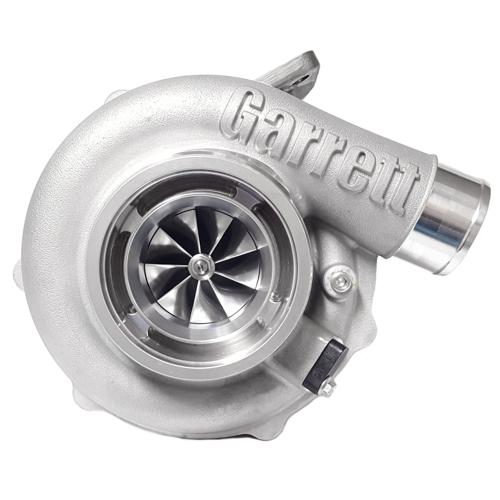

Turbocharger, Garrett G30-900 Standard Rotation, 0.82 A/R, T3 Undivided (open), T31 (Narrow) 4 bolt GRT-TBO-N51
HomeStore

Turbocharger, Garrett G30-900 Standard Rotation, 0.82 A/R, T3 Undivided (open), T31 (Narrow) 4 bolt GRT-TBO-N51

Turbocharger, Garrett G30-900 Standard Rotation, 0.82 A/R, T3 Undivided (open), T31 (Narrow) 4 bolt GRT-TBO-N51

Product Description:

Garrett® G30-900 standard rotation turbocharger with 4" inlet and 2" outlet compressor housing and 0.82 A/R T3 undivided (open), T31 4 bolt (narrow) outlet turbine housing.

Product Features:

  • New G Series compressor wheel aerodynamics
  • Fully machined speed sensor and pressure ports
  • Standard and reverse rotation configurations available
  • Oil restrictor and water fittings included with purchase
  • One piece center housing and backplate for increased durability
  • 4 water jacket ports for customizable installation
  • Mar-M turbine wheel material rated up to 1050° C | 1922° F
Product Specifications:
  • Compressor Wheel Inducer: 62mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

Installation Hardware:

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • 4 Bolt Outlet Flange (for Downpipe): FLS-084
  • 4 Bolt Outlet Gasket: GSK-012

  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032


    • Compressor & Turbine Maps:
