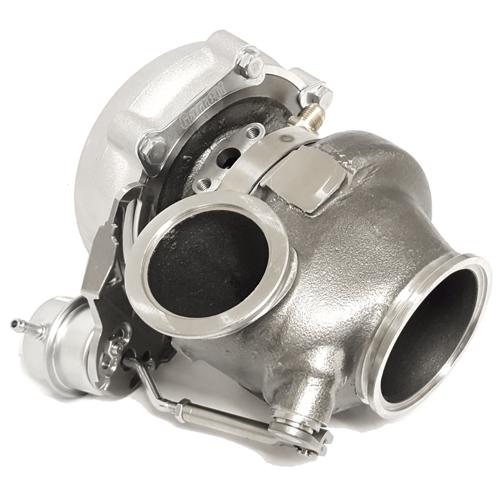

G25-550 & V-Band, w/ Internally Wastegate Turbine Housing, .92 A/R. # 877895-5004S
DOES NOT COME WITH FLANGES
Understanding the Name:
G25-550
G designates 81 years of Garrett® heritage.
25 classifies the size of the frame. The remaining 3 digits identify the max horsepower rating of the turbocharger. (ie 550)
Horsepower: 300 - 550
Displacement: 1.4L - 3.0L
Product Description:
- The Garrett G-Series G25-550 advanced small frame ball bearing turbocharger; including a Garrett stainless steel V-Band Inlet, V-Band Outlet, & Internal Wastegate .92 A/R turbine housing (Garrett Part #877895-5004S). 550HP from a small frame package!
- Ultra High Flow G-Series Compressor Wheel
- Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
- Includes -4AN oil feed fitting and -6AN coolant/water fittings
Product Specifications:
- Compressor Wheel Inducer: 48mm
- Compressor Wheel Exducer: 60mm
- Compressor Wheel Trim: 65
- Compressor Housing Inlet: 3 Inch Diameter
- Compressor Housing Outlet: 2 Inch Diameter
- Compressor Housing A/R: .70
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 49mm
- Turbine Wheel Trim: 84
- Turbine Housing Inlet: 3 Inch O.D. V-Band
- Turbine Housing Outlet: 3.55 inch O.D. V-Band
- Includes Oil Feed (1mm) Restrictor Fitting to -4AN
- Includes two Coolant Fittings to -6AN
- 1 Bar wastegate (default)
- Inlet V-Band Flange (For Turbo Manifold): FLS-350
- Inlet V-Band Clamp (For Turbo Manifold): CLA-265
- Out V-Band Flange (For Down-pipe): FLS-351
- Out V-Band Clamp (For Down-pipe): CLA-048
- Oil drain flange: FLA-010
- Oil drain gasket: GSK-008
- Oil drain fasteners: FST-034
- Boost Pressure Port Fitting: FTG-198
-
Speed Sensor Kit: ACS-032
Compressor & Turbine Maps:
Select ALTERNATE SELECTION: .61 A/R T3 turbine Housing
From $2,377.33
G25-550 & V-Band, w/ Internally Wastegate Turbine Housing, .92 A/R. # 877895-5004S—
$2,377.33
