G25-550 & V-Band Turbine Hsg .92 A/R # 871389-5005S



DOES NOT COME WITH FLANGES



Understanding the Name:
G25-550

G designates 81 years of Garrett® heritage.

25 classifies the size of the frame. The remaining 3 digits identify the max horsepower rating of the turbocharger. (ie 550)

Horsepower: 300 - 550

Displacement: 1.4L - 3.0L



Product Description:

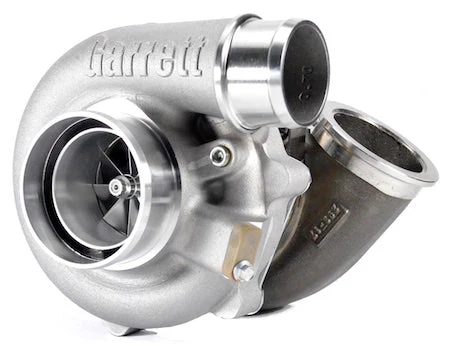

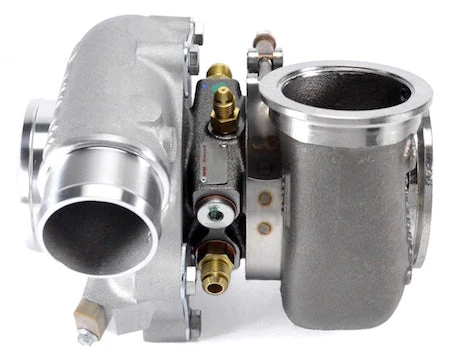

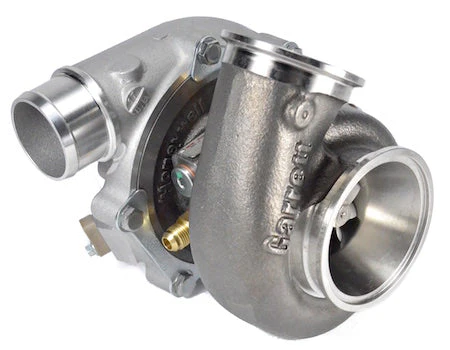

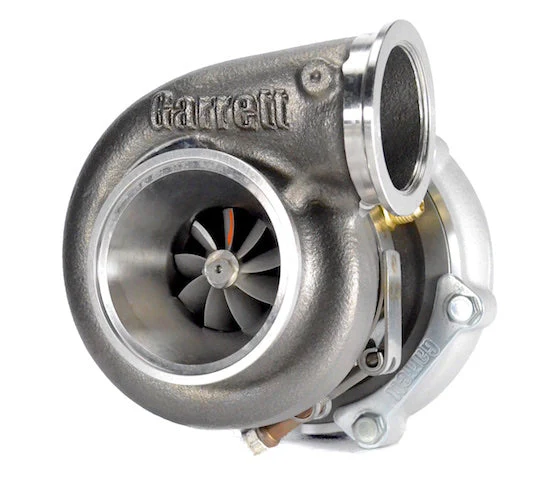

The Garrett G-Series G25-550 advanced small frame ball bearing turbocharger; including a Garrett stainless steel V-Band Inlet & V-Band Outlet .92 A/R turbine housing (Garrett Part #871389-5005S). 550HP from a small frame package!
• Ultra High Flow G-Series Compressor Wheel
• Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
• Includes -4AN oil feed fitting and -6AN coolant/water fittings

Product Specifications:

• Compressor Wheel Inducer: 48mm
• Compressor Wheel Exducer: 60mm
• Compressor Wheel Trim: 65
• Compressor Housing Inlet: 3 Inch Diameter
• Compressor Housing Outlet: 2 Inch Diameter
• Compressor Housing A/R: .70
• Turbine Wheel Inducer: 54mm
• Turbine Wheel Exducer: 49mm
• Turbine Wheel Trim: 84
• Turbine Housing Inlet: 3 Inch O.D. V-Band
• Turbine Housing Outlet: 3.55 inch O.D. V-Band
• Includes Oil Feed (1mm) Restrictor Fitting to -4AN
• Includes two Coolant Fittings to -6AN

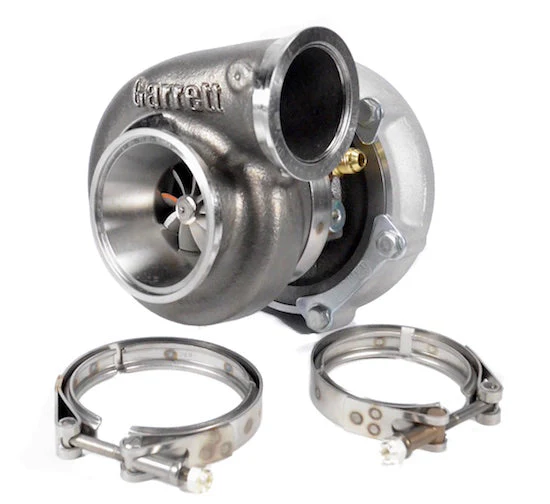

• Includes Turbine Housing Inlet & Outlet V-Band Clamps

INSTALLATION HARDWARE:

• Inlet V-Band Flange (For Turbo Manifold): FLS-350
• Inlet V-Band Clamp (For Turbo Manifold): CLA-265
• Out V-Band Flange (For Down-pipe): FLS-351
• Out V-Band Clamp (For Down-pipe): CLA-048
• Oil drain flange: FLA-010
• Oil drain gasket: GSK-008
• Oil drain fasteners: FST-034
• Boost Pressure Port Fitting: FTG-198

• Speed Sensor Kit: ACS-032

•
