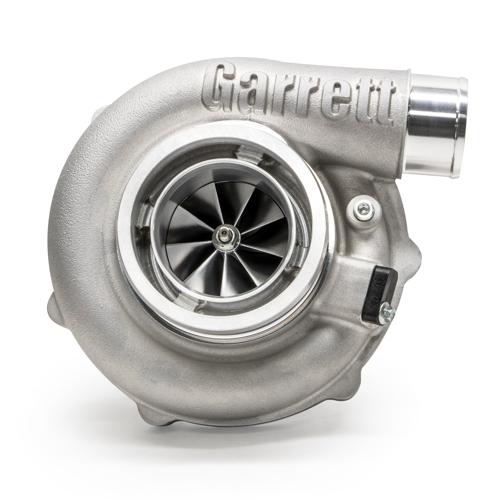

Supercore, Garrett G25-550, STANDARD ROTATION, Turbo W/O Turbine Housing, P/N: 858161-5002S GRT-TBO-N19

Supercore, Garrett G25-550, STANDARD ROTATION, Turbo W/O Turbine Housing, P/N: 858161-5002S GRT-TBO-N19

Product Description:

The Garrett G-Series G25-550 advanced small frame ball bearing turbocharger. 550HP from a small frame package!

    • Ultra High Flow G-Series Compressor Wheel
    • Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
Product Specifications:
  • Compressor Wheel Inducer: 48mm
  • Compressor Wheel Exducer: 60mm
  • Compressor Wheel Trim: 65
  • Compressor Housing Inlet: 3 Inch Diameter
  • Compressor Housing Outlet: 2 Inch Diameter
  • Compressor Housing A/R: .70
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 49mm
  • Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032


    • Compressor & Turbine Maps:


    Select OPTIONAL SELECTION:
    From $501.36

    Original: $1,671.19

    -70%
    Supercore, Garrett G25-550, STANDARD ROTATION, Turbo W/O Turbine Housing, P/N: 858161-5002S GRT-TBO-N19—

    $1,671.19

    $501.36
